Ho Hsing 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
和星 [Ho Hsing]	1.2000- CG101		China SB Corp., Keelung			26.12.1991	Coast Guard 1.2000, in service (2019)
偉星 [Wei Hsing]	1.2000- CG102		China SB Corp., Keelung			26.12.1991	Coast Guard 1.2000, in service (2019)

Technical data

Displacement standard, t
Displacement full, t	1795
Length, m	82.3
Breadth, m	11.6
Draught, m	4.14
No of shafts	2
Machinery	2 MTU 16V1163 TB93 diesels
Power, h. p.	13120
Max speed, kts	22
Fuel, t	diesel oil 290
Endurance, nm(kts)	7000(16)
Armament	1 x 1 - 20/68 T75, 2 x 1 - 12.7/90, 4 12.2m interceptor craft
Electronic equipment	2x Racal-Decca radars
Complement	80

Graphics

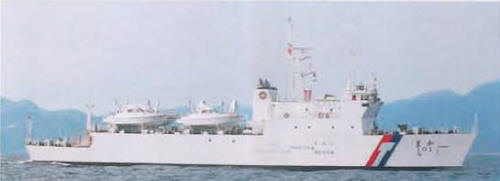

Ho Hsing 2008

Project history

Ordered in 1990. Planned to deliver both in July 1991 but were delayed by German embargo on the engines. Nearly complete, Ho Hsing capsized 18.8.1991 in a typhoon and was salvaged. Have accommodations for two senior personnel in addition to listed crew. Very similar to US Coast Guard Bear-class 270-ft cutters but carry no heavy armament and substitute four high-speed interceptor craft in individual davits (two per side) for a helicopter facility. The eight interceptor craft were delivered in 1991 from Hood Military Vessels ol the USA: 12.2 m overall, six crew, two 300hp Cummins diesels driving Arneson outdrives for 35 kts, range: 466 nautical miles at 30 kts.

Modernizations

None.
