NING HAI patrol craft (1987-1990)

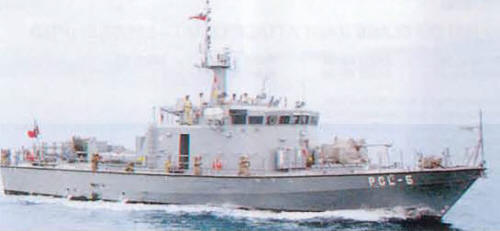

PCL5 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 寧海 [Ning Hai] | PCL1 | China SB, Kaohsiung | 1987 | stricken 2015-16 | |||
| 鞍海 [An Hai] | PCL2 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | |||
| PCL3 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL5 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL6 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL7 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL8 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 | ||||
| PCL9 | China SB, Kaohsiung | 1987-91 | stricken 2015-16 |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 143 |
| Length, m | 32.1 |
| Breadth, m | 9.00 |
| Draught, m | 1.80 |
| No of shafts | 3 |
| Machinery | 3 MTU 12 V396 TB93 diesels |
| Power, h. p. | 5760 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil 36 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/68 T75, 2 x 1 - 12.7/90, 2 DCR (4) |
| Electronic equipment | Decca radar, sonar |
| Complement | 16 |
Graphics
PCL5 2002
Project history
Patrol boats, designed by Vosper-QAF, Singapore.
Modernizations
None.
Naval service
No significant events.
