FUH CHOW fast attack craft (torpedo) (1957)

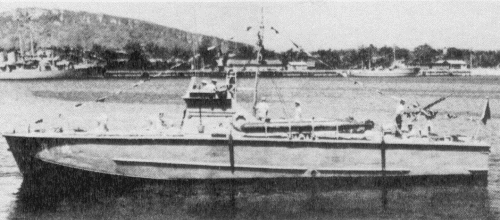

Fuh Chow with 40mm gun landed

Ships


Names Builders Completed Losses Transfers Discarding

PT1, 1982?- PT511 [Fu Chow]

PT2, 1982?- PT512 [Hsueh Chih]

Mitsubishi, Nagasaki, Japan: PT1, 2

6-11/1957: PT1, 2

none

none

1982: PT511, 512



Technical data


Displacement standard, t

33

Displacement full, t

40

Length, m

21.6

Breadth, m

6.10

Draught, m
No of shafts3
Machinery

3 petrol engines

Power, h. p.
Max speed, kts

40

Fuel, tpetrol
Endurance, nm(kts)
Armament

1 x 1 - 40/60 Mk 3, 1 x 2 - 20/70 Mk 24, 2 - 450 TT

Electronic equipmentradar?
Complement

12



Graphics


<i>Fuh Chow </i>with 40mm gun landed
Fuh Chow with 40mm gun landed


Ship project history


Conventional MTBs.

Modernizations


None.

Naval service


No significant events.
