FABG5 fast attack craft (missile) (1980)
FABG5, 6 1980
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
FABG5, 6 |
Israeli Aircraft Industries, Be'er Sheva, Israel: FABG5, 6 |
1980: FABG5, 6 |
none |
none |
2003: FABG5, 6 |
Technical data
| Displacement standard, t | 47 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 21.6 |
| Breadth, m | 5.49 |
| Draught, m | 0.94 hull 1.82 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 12V331 TC82 diesels |
| Power, h. p. | 2860 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(17) |
| Armament | 2 x 1 Gabriel II SSM (2 Gabriel II), 1 x 1 - 20/68 T75, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 926, EL/M-2221 radars, Elop e/o director |
| Complement | 10 |
Graphics

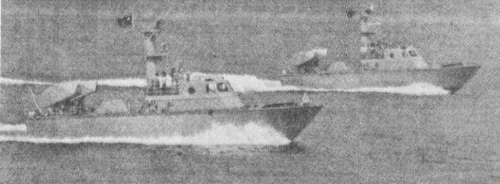

FABG5, 6 1980
Project history
Prototypes for the later Hai Ou desogn, equipped with Israeli weapons and sensors.
Modernizations
None.
Naval service
No significant events.
