SJÖORMEN submarines (1968-1969)





Sjöormen 1979 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sjöormen Sor 500 Kockums, Malmö 1965 25.1.1967 31.7.1968 to Singapore 7.1997 (Centurion)
Sjölejonet Sle 501 Kockums, Malmö 1965 29.6.1967 16.12.1968 to Singapore 7.1997 (Conqueror)
Sjöbjörnen Sbj 364 Örlogsvarv Karlskrona 1966 9.1.1968 28.2.1969 to Singapore 7.1997 (Challenger)
Sjöhunden Shu 502 Kockums, Malmö 1966 21.3.1968 25.6.1969 to Singapore 2.1997 (Chieftain)
Sjöhästen Shä 365 Örlogsvarv Karlskrona 1966 6.8.1968 15.9.1969 to Singapore for spares 7.1997


Technical data


Displacement standard, t
Displacement normal, t

1125 / 1400

Length, m

50.0 wl 50.5 oa

Breadth, m

6.10

Draught, m

5.10

No of shafts

1

Machinery

2 Hedemora-Pielstick 12PA-4 diesel-generators / 1 ASEA electric motor

Power, h. p.

2200 / 1500

Max speed, kts

15 / 20

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

4 - 533 TT (bow, 10), 2 - 400 TT (bow, 4), mines

Electronic equipmentTerma radar, sonar, IBS-A12 CCS
Complement

23

Diving depth operational, m150


Standard scale images

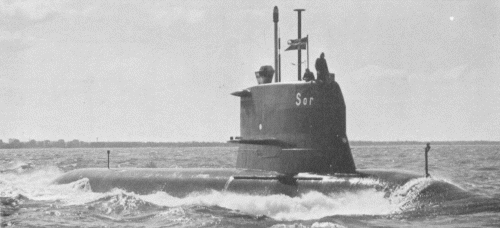

<i>Sjöormen </i>1975
Sjöormen 1975


Graphics


<i>Sjöormen</i> 1979 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Sjöormen 1979 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Voted in 1961; two decks, bow planes on the sail and X-configured stern planes. 'Teardrop' hull shape, 5-blade propeller. Attack submarines, A11 type.

Modernizations

1984-1985, Sjöbjörnen: - IBS-A12 CCS; + IBS-A17 CCS

1984-1985, all: sonar became CSU-83

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
