HAJEN submarines

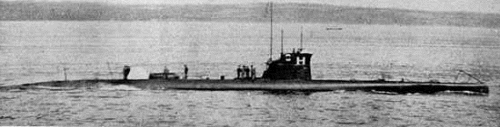

Hajen 1940

Name	No	Builder	Laid down	Launched	Comp	Fate
Hajen	H, Hj	Kockums, Malmö	1917	8/11/1917	5/1920	stricken 3/1943
Sälen	S, Sä	Kockums, Malmö	1917	31/1/1918	6/1920	stricken 7/1942
Valrossen	V, Wa	Kockums, Malmö	1917	16/4/1918	8/1920	stricken 3/1943

Displacement standard, t
392 /

Displacement normal, t

422 / 600

Length, m

54.0

Breadth, m

5.20

Draught, m

3.50

No of shafts

2

Machinery

6cyl diesels / electric motors

Power, h. p.

2000 / 700

Max speed, kn

15.5 / 9

Fuel, t

diesel oil

Armament

1 x 1 - 75/50 M12, 4 - 450 TT (bow, 8)

Complement

30

Diving depth operational, m 30?

Ship project history: Increased version of Svärdfisken, Kockums design based on Weser AG drawings.

Modernizations: early 1930s, all: - 1 x 1 - 75/50; + 1 x 1 - 57/55 M89B.

Naval service: No significant events.
