MUL11 coastal minelayer (1946)
Kalvsund 1976
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Mul11, 1986- Kalvsund | MUL11, Klv | 1946 | 1946 | auxiliary 1993, stricken 2001 |
Technical data
| Displacement standard, t |
|
|---|---|
| Displacement full, t | 200 |
| Length, m | 30.1 |
| Breadth, m | 7.21 |
| Draught, m | 3.60 |
| No of shafts | 1 |
| Machinery | 2 Atlas diesels |
| Power, h. p. | 300 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 20/66 M40, mines |
| Complement | 9 |
Graphics

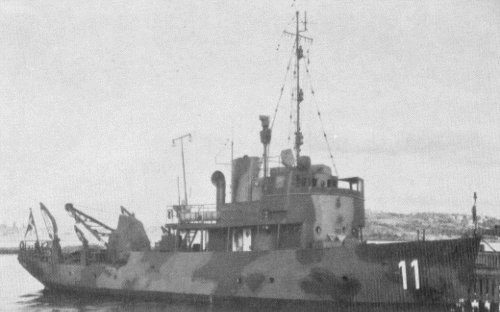

Kalvsund 1976
Project history
Small minelayer, belonged to Coastal Artillery.
Modernizations
none.
Naval service
no significant events.
