M501 minelaying launches (1969-1971)
M502 1975
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
M501-516 |
1969-1971: M501-516 |
no |
no |
1990s: M501, 503, 504, 506, 507, 509-512, 514, 515 2000s: M502, 508, 513, 516 2010s: M505 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 15 |
| Length, m | 14.6 |
| Breadth, m | 4.20 |
| Draught, m | 0.90 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 12 mines |
| Electronic equipment | Decca |
| Complement | 7 |
Graphics

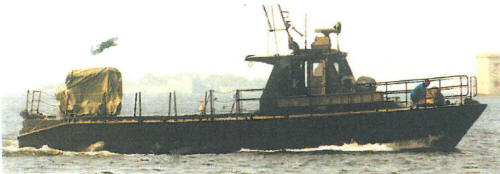

1995

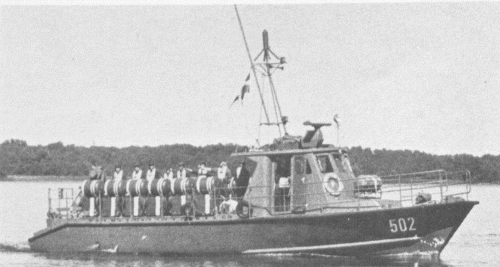

M502 1975
Project history
Small minelaying boats, belonged to Coastal Artillery.
Modernizations
none.
Naval service
no significant events.
