SKAGUL landing craft (1959-1967)





Skagul 1981

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sleipner A335   Hammarbyverken   1959 1959 stricken 1992
Skagul A333   Hammarbyverken   1960 1960 stricken 1998
Grim, 2003- Räfsnäs -   Kalmar Varv   1961 1962 stricken 2006
Bore -   Åsiverken, Åmål   1966 1967 stricken 2006
Heimdal -   Åsiverken, Åmål   1966 1967 stricken 2006


Technical data


Displacement standard, t

first two: 275
Displacement full, t

first two: 335

others: 340
Length, m

first two: 36.0

others: 37.8
Breadth, m

8.60
Draught, m

2.60
No of shafts

2
Machinery

2 diesels
Power, h. p.

first two: 640

others: 800
Max speed, kts

first two: 10

others: 12
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

2 x 1 - 12.7/92, provision for 2 x 1 - 20/70 Mk 7
Military load

325 troops
Electronic equipment

Terma radar
Complement




Graphics

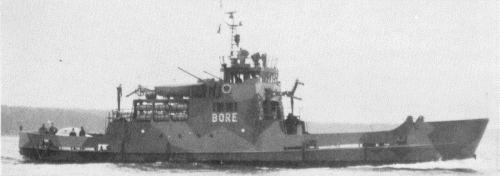

<i>Bore</i> 1969
Bore 1969

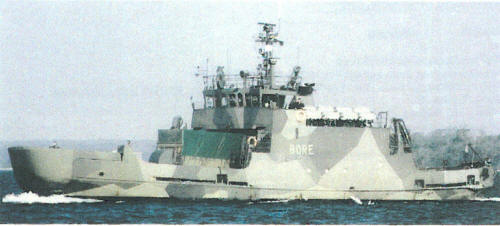

<i>Bore </i>2000
Bore 2000

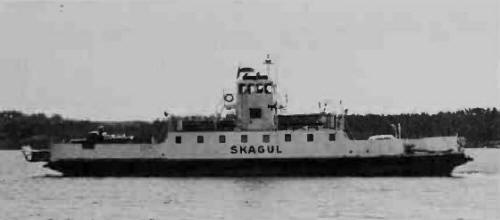

<i>Skagul </i>1981
Skagul 1981


Project history

LCMs of car ferry design, Operated by Coastal Artillery.

Modernizations

None.

Naval service

No significant events.
