NAVYPEDIA

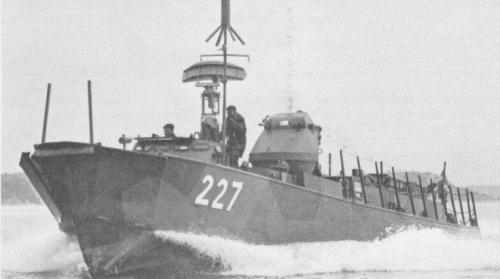

SVK227 1975

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
SVK201 - 276 SVK280 - 284	Lunde, Kramfors; Marinteknik, Öregrund: SVK201 - 276, 280 - 284	1957 - 1960: SVK201 - 241 1971 - 1973: SVK242 - 255 1975: SVK256 - 263 1976: SVK264 - 269, 274 - 276 1977: SVK270 - 273 1976 - 1977: SVK280 - 284	None	None	1992-2002: SVK201-206, 209, 210, 218, 227, 229, 240 2003-2005: SVK211-214, 216, 217, 219-222, 224, 226, 233, 236, 238, 239, 242, 243, 245, 246, 249-251, 253-257, 259, 260, 262, 265, 266, 270-276, 280, 282, 284 2006-2013: SVK207, 208, 215, 225, 228, 230-232, 234, 235, 237, 241, 244, 247, 248, 252, 258, 261, 263, 264, 267-269, 281, 283 2013-2015: SVK223

Technical data

Displacement standard, t
Displacement full, t	31
Length, m	21.4
Breadth, m	4.20
Draught, m	1.30
No of shafts	3
Machinery	3 diesels
Power, h. p.	600
Max speed, kts	17
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 20/70 Mk 7 or 2 x 1 - 6.5/115, can lay mines
Military load	40 t of cargo or 40 troops
Electronic equipment
Complement

Graphics

Project history

LCAs. Patrol boat-like bow can be opened to permit extension of the ramp from troop compartment below the deck. Coastal artillery.

Modernizations

1984 - 1998, 53 boats: diesels were replaced by 2 Saab-Scania DSI-14 (950hp, 18kts)

Naval service

No significant events.
