POSEIDON patrol ships (2009-2010)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Poseidon | Kbv001 | Damen, Galati, Romania | 20.2.2008 | 1.6.2009 | in service (2019) | ||
| Triton | Kbv002 | Damen, Galati, Romania | 14.8.2008 | 12.12.2009 | in service (2019) | ||
| Amfitrite | Kbv003 | Damen, Galati, Romania | 19.5.2009 | 5.5.2010 | in service (2019) |
Technical data
| Displacement standard, t | 2270 |
|---|---|
| Displacement full, t | 3400 |
| Length, m | 70.6 pp 81.3 oa |
| Breadth, m | 16.0 |
| Draught, m | 6.50 |
| No of shafts | 2 azipods |
| Machinery | 3 Caterpillar 3516 diesel-generators + 2 Caterpillar 3512 diesel-generators, 2 electric motors |
| Power, h. p. | 8850 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | none |
| Electronic equipment | 2x Bridgemaster radars, Subsea sonar |
| Complement | 15 |
Standard scale images

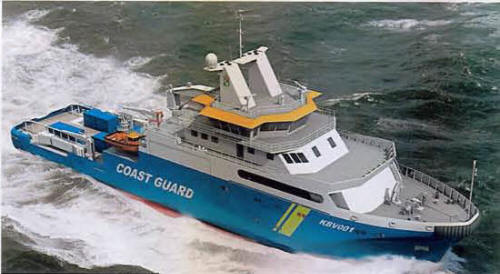

Poseidon 2010
Graphics
Project history
Coast Guard. Multi-purpose patrol vessels with SAR, towing and oil-spill cleanup abilities. 24t crane, 110t bollard pull.
Modernizations
none.
Naval service
no significant events.
