FURUSUND coastal minelayer (1983)

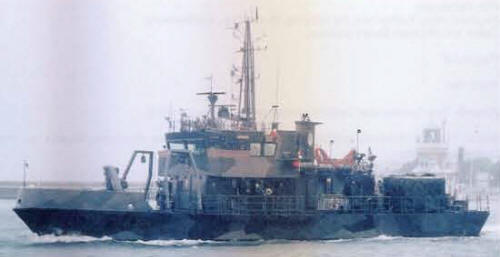

Furusund 2001 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Mul20, 1986- Furusund | MUL20, 2000s- A320 | 320 | Åsiverken, Åmål | 16.12.1982 | 10.10.1983 | in service (2019) |
Technical data
| Displacement standard, t | 225 |
|---|---|
| Displacement full, t | 245 |
| Length, m | 30.0 pp 32.4 oa |
| Breadth, m | 8.30 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 2 Saab-Scania GASI14 diesel-generators, 2 ASEA electric motors |
| Power, h. p. | 420 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90, 24 t mines |
| Electronic equipment | Decca RM1226C radars |
| Complement | 24 |
Graphics
Furusund 2001 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Small minelayer, belonged to Coastal Artillery. Planned building of nine more ships was cancelled.
Modernizations
none.
Naval service
no significant events.
Many thanks to Wolfgang Stöhr for additional information on this page.
