TV281 patrol boats (1979-1987)
Kbv287 2004
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
TV281 - 285, 1986- Kbv281 - 285 Kbv286, 287 |
Djupviks, Tjörn/Rönnäng: TV281-285, Kbv286, 287 |
1979: TV281, 282 1980: TV283 1984: TV284, 285 1986: Kbv286 1987: Kbv287 |
None |
None |
2006: Kbv284 2008: Kbv283 2011: Kbv281 2013-2014: Kbv282, 285-287 |
Technical data
| Displacement standard, t | 37 |
|---|---|
| Displacement full, t | 42 |
| Length, m | 21.9 |
| Breadth, m | 5.00 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 Cummins KTA38M diesels |
| Power, h. p. | 2100 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | Furuno FR2011, Furuno FR7040R radars |
| Complement | 5 |
Graphics

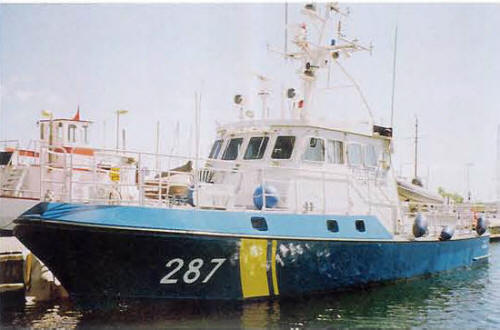

Kbv287 2004
Project history
Coast Guard. Aluminium hull, class 'B'.
Modernizations
none.
Naval service
no significant events.
