TV102 patrol boats (1972-1973)
TV105 1980s
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
TV102 Göteborg, 1986- Kbv102 Göteborg TV103 Simrishamn, 1986- Kbv103 Simrishamn TV104, 1986- Kbv104 TV105, 1986- Kbv105 |
Djupviks, Tjörn: TV102-105 |
1972-1973: TV102-105 |
None |
None |
2001: Kbv102, 105 2002: Kbv104 2013: Kbv103 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 53 |
| Length, m | 26.7 |
| Breadth, m | 5.23 |
| Draught, m | 1.13 |
| No of shafts | 2 |
| Machinery | 2 MTU 8V331 TC82 diesels |
| Power, h. p. | 1866 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil 11 |
| Endurance, nm(kts) | 1000(15) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 6 |
Graphics

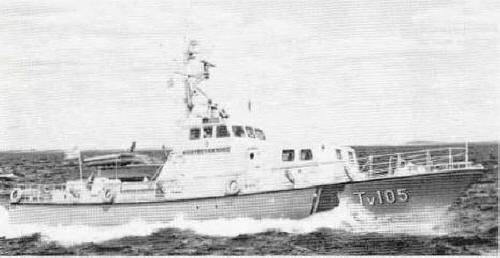

TV105 1980s

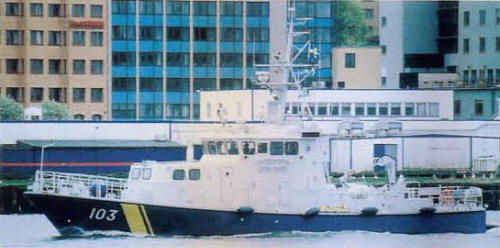

Kbv103 2007
Project history
Coast Guard. Aluminium hull, class 'A'.
Modernizations
1987, Kbv105: re-engined with 2 Cummins KTA38M diesels (2100hp)
Naval service
no significant events.
