SVÄV-ARNE air-cushion landing craft (1998)
Sväv-Arne 1998
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Sväv-Arne |
Karlskronavarvet: Sväv-Arne |
1998: Sväv-Arne |
None |
none |
2010: Sväv-Arne |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 26 |
| Length, m | 20.6 |
| Breadth, m | 8.60 |
| Draught, m | 0.35 // 0 |
| No of shafts | 2 air propellers, 2 lift fans |
| Machinery | 2 Deutz BF12L513C diesels |
| Power, h. p. | 1050 |
| Max speed, kts | 50 light 35 loaded |
| Fuel, t | diesel oil 4 |
| Endurance, nm(kts) | 600(30) |
| Armament | 1 x 1 - 12.7/90 |
| Military load | 50 troops, 1 tracked vehicle |
| Electronic equipment | radar |
| Complement | 3 |
Graphics

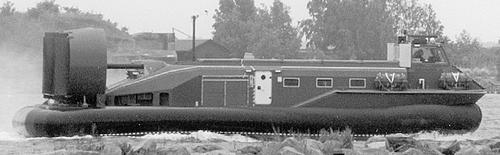

Sväv-Arne 1998
Project history
Coastal artillery. M-10X design of ABS Hovercraft (UK). Planned order for six more was cancelled. GRP carbon fiber hull with vinyl laminate, superstructure was kevlar re-inforced.
Modernizations
none.
Naval service
no significant events.
