N:R451 landing craft (1998-1999)
452 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
451, 452 |
Djupviksvarv, Tjörn: 451, 452 |
1998: 451 1999: 452 |
None |
none |
in service (2019): 451, 452 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 43 |
| Length, m | 23.5 |
| Breadth, m | 5.10 |
| Draught, m | 1.00 |
| No of shafts | 3 waterjets |
| Machinery | 451: 3 Saab-Scania DSI14 V8 diesels 452: 3 Volvo-Penta 163 diesels |
| Power, h. p. | 1875 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 12.7/90, mines |
| Military load | 45 troops or 10 t cargo |
| Electronic equipment | Terma radar |
| Complement | 3 |
Graphics

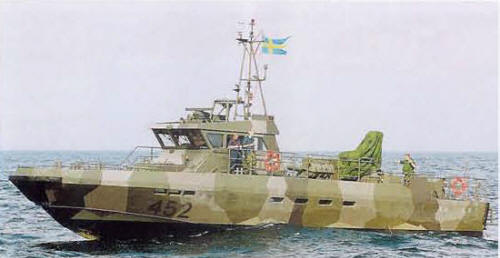

452 2000
Project history
Coastal artillery. Aluminium hull, landing ramp fwd. Became the prototypes to evaluate proposed program for about 12 additional craft, but no further orders were been.
Modernizations
none.
Naval service
no significant events.
