KBV312 patrol boats (2012-2013)
Kbv312
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Kbv312-316 |
Baltic Workboats, Nasva, Estonia: Kbv312-316 |
2012: Kbv312, 313 2013: Kbv314-316 |
None |
None |
in service (2019): Kbv312-316 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 51 |
| Length, m | 23.0 wl 26.5 oa |
| Breadth, m | 6.20 |
| Draught, m | 1.50 |
| No of shafts | 3 azipods |
| Machinery | 3 Volvo-Penta D13-800 diesels |
| Power, h. p. | 3150 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(15) |
| Armament | small arms |
| Electronic equipment | JMA5300 radar |
| Complement | 5 |
Graphics

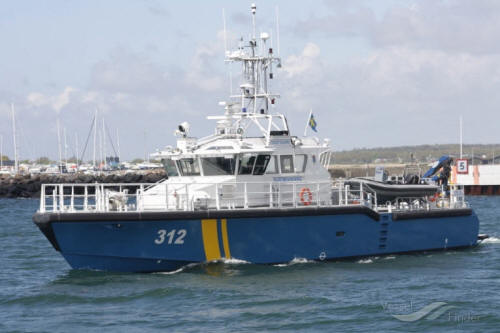

Kbv312
Project history
Coast Guard. Aluminium semiplanning hull. Stern ramp with 5m RIB.
Modernizations
none.
Naval service
no significant events.
