KBV288 patrol boats (1990)
Kbv290 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Kbv288 - 290 |
Djupviks, Tjörn/Rönnäng: Kbv288-290 |
1990: Kbv288-290 |
None |
None |
2015-2016: Kbv288-290 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 53 |
| Length, m | 21.9 |
| Breadth, m | 5.40 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Cummins KTA38M diesels |
| Power, h. p. | 2080 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300 |
| Armament | small arms |
| Electronic equipment | Furuno FR2011, Furuno FR7040R radars |
| Complement | 5 |
Graphics

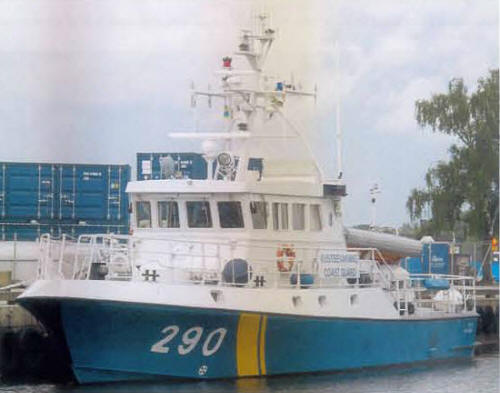

Kbv290 2008
Project history
Coast Guard. Aluminium hull, class 'B'.
Modernizations
none.
Naval service
no significant events.
