V51 patrol boats (1944-1945)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| V51 | Oskarshamns Varvet | 1944 | 1944 | stricken 11.1966 | |||
| V52 | Finnboda, Stockholm | 4.10.1945 | 1945 | stricken 11.1966 | |||
| V53 | Örlogsvarvet Stockholm | 4.12.1944 | 1945 | stricken 11.1966 | |||
| V54 | Finnboda, Stockholm | 4.10.1945 | 1945 | stricken 6.1965 | |||
| V55 | Örlogsvarvet Stockholm | 19.9.1944 | 1944 | stricken 6.1965 | |||
| V56 | Oskarshamns Varvet | 2.8.1945 | 1945 | stricken 11.1966 |
Technical data
| Displacement standard, t | 120 |
|---|---|
| Displacement full, t | 145 |
| Length, m | 32.0 |
| Breadth, m | 5.30 |
| Draught, m | 2.20 |
| No of shafts | 1 |
| Machinery | 1 VTE, 1 boiler |
| Power, h. p. | 400 |
| Max speed, kts | 11 |
| Fuel, t | oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 20/63 K/66 M40, 1 x 1 - 8.80 |
| Complement | 12 |
Standard scale images

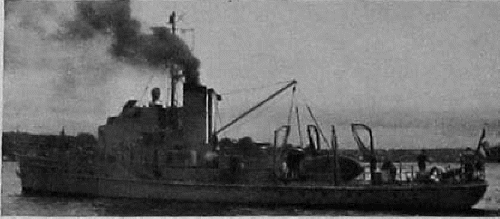

V51 1960
Graphics
Project history
Patrol boats belonged to Coastal Artillery.
Modernizations
none.
Naval service
no significant events.
