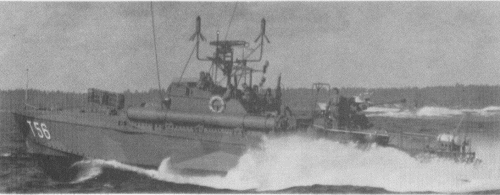

T56 1975

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
T42, 1977- V01 Skanör T43, 1977- V02 Smyge T44, 1977- V03 Arild T45, 46 T47, 1983- V05 Öregrund T48, 1983- V06 Slite T49 T50, 1983- V07 Sandhamn T51, 1983- V08 Lysekil T52 - 56	Kockums, Malmö: T42 - 52, 56 Kockums, Malmö // Örlogsvarv Karlskrona: T53 - 55	1955 - 1957: T42 - 56	none	none	1983: T45, 46, 49, 52 - 56 1989: V01 Skanör, V02 Smyge 1991: V03 Arild 1994: V05 Öregrung, V06 Slite, V07 Sandhamn, V08 Lysekil

Technical data

Displacement standard, t	40
Displacement full, t	45
Length, m	23.0
Breadth, m	5.90
Draught, m	1.40
No of shafts	3
Machinery	3 Isotta-Fraschini 184C petrol motors
Power, h. p.	4500
Max speed, kts	45
Fuel, t	petrol
Endurance, nm(kts)
Armament	1 x 1 - 40/70 M48, 2 - 533 TT, 1 x 12 - 57 RFL
Electronic equipment	Scanter 009 radar
Complement	16

Standard scale images

Graphics

Project history

All-welded steel hulls. Hulls of T42-44 were used for building of patrol boats of Skanör class.

Modernizations

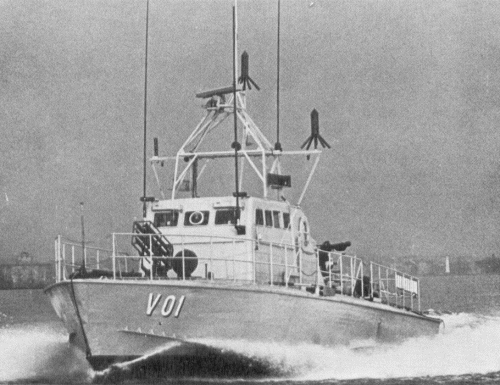

1977, Skanör, Smyge, Arild; 1983, Öregrund, Slite, Sandhamn, Lysekil: one shaft was removed (6000hp, 27kts); - 2 - 533 TT

Naval service

No significant events.
