T32 motor torpedo boats (1951-1953)





T34 1972

Ships


Names Builders Commissioned Losses Transfers Discarding

T32 - 40

T41, 1976- V04 Viken

Kockums, Malmö // Örlogsvarv Karlskrona: T32 - 41

1951 - 1953: T32 - 41

none

none

7/1972: T32 - 37

1/1975: T38 - 40

1991: V04 Viken



Technical data


Displacement standard, t

39

Displacement full, t
Length, m

23.0

Breadth, m

5.60

Draught, m

1.40

No of shafts

3

Machinery

3 Isotta-Fraschini 184C petrol motors

Power, h. p.

4500

Max speed, kts

45

Fuel, t

petrol

Endurance, nm(kts)
Armament

1 x 1 - 40/70 M48, 2 - 533 TT, 1 x 12 - 57 RFL

Electronic equipmentradar
Complement

16



Standard scale images


<i>T32 </i>1965
T32 1965


Graphics

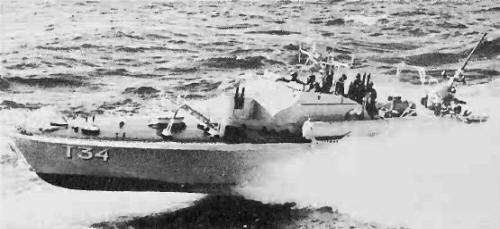

<i>T34 </i>1972
T34 1972


Project history

All-welded steel hulls. Hull of T41 was used for building of patrol boat Viken.

Modernizations

1976, V04 Viken as patrol craft: - 2 - 533 TT

Naval service

No significant events.
