MTB1 motor torpedo boats (1918/1920)





Mtb1

Ships


Names Builders Commissioned Losses Transfers Discarding

Mtb1, 2 (ex-MAS231, 232)

Orlando, Leghorn, Italy: Mtb1, 2

1918 // 1920: Mtb1, 2

no

no

1927: Mtb1, 2



Technical data


Displacement normal, t

12.9

Displacement full, t



Length, m

16.4

Breadth, m

2.80

Draught, m

1.40

No of shafts

2

Machinery

2 Isotta Fraschini petrol engines

Power, h. p.

500

Max speed, kts

28

Fuel, t

petrol

Endurance, nm(kts)200(26)
Armament

1 x 1 - 6.5/80, 2 - 450 TT, 4 DC

Complement

8



Standard scale images


<i>Mtb 1 </i>1920
Mtb 1 1920


Graphics

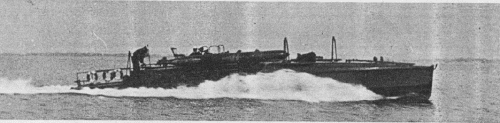

<i>Mtb1</i>
Mtb1


Project history

Italian MTBs of "A" group, 2nd series. For use in archipelagos.

Modernizations

none.

Naval service

no significant events.
