DALARÖ patrol boats (1984-1985)
Östhammar 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
V09 Dalarö V10 Sandhamn V11 Östhammar, 2008- SVK11 Östhammar |
Djupviks varvet, Rönnäng: V09-11 |
1984: V09, 10 1985: V11 2008: SVK11 (2nd time) |
none |
none |
2002: V09-11 in service (2019): SVK11 (2nd time) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 50 |
| Length, m | 23.4 |
| Breadth, m | 5.10 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 MTU 8V396 TB83 diesels |
| Power, h. p. | 2100 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/70 Bofors 315, 2 x 1 - 7.6/90, mines |
| Electronic equipment | Terma TM-610 radar |
| Complement | 7 + 3 passengers |
Graphics

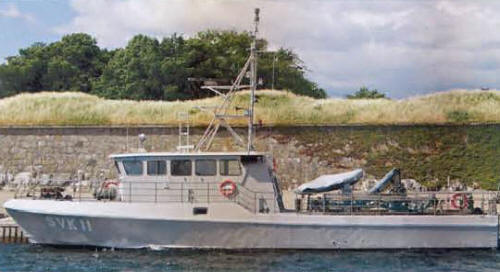

Östhammar 2008
Project history
Ordered in 1983 in lieu of further torpedo boats.
Modernizations
2008, Östhammar: was recommissioned with small arms only, 2x nav. radars
Naval service
Östhammar was recommissioned in 2008 as TS for reservists.
