SVERIGE coastal battleships (1917-1922)





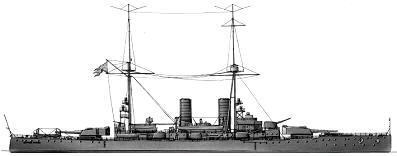

Gustaf V 1922

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sverige   414 Lindholmen, Göteborg 12/12/1912 3/5/1915 10/5/1917 stricken 1/1953
Drottning Victoria     Götaverken, Göteborg 7/1915 15/9/1917 3/1921 stricken 4/1957
Gustaf V   122 Kockums, Malmö 12/1914 31/1/1918 1/1922 school hulk 4/1957


Technical data


Displacement standard, t

Sverige: 6852

Drottning Victoria, Gustaf V: 7125

Displacement full, t

Sverige: 7516

Drottning Victoria, Gustaf V: 7633

Length, m

Sverige: 119.7 wl 120.0 oa

Drottning Victoria, Gustaf V: 120.9 wl 121.6 oa

Breadth, m

18.6

Draught, m

Sverige: 6.30 normal 6.50 deep load

Drottning Victoria, Gustaf V: 6.20 normal 6.70 deep load

No of shafts

Sverige: 4

Drottning Victoria, Gustaf V: 2

Machinery

Sverige: 4 Westighouse steam turbines, 12 Yarrow boilers

Drottning Victoria, Gustaf V: 2 sets Motala geared steam turbines, 12 Yarrow boilers

Power, h. p.

Sverige: 25400

Drottning Victoria, Gustaf V: 23910

Max speed, kts

22.5

Fuel, t

Sverige: coal 776 + oil 100

Drottning Victoria, Gustaf V: coal 761 + oil 100

Endurance, nm(kts)

Sverige: 2720(14)

Drottning Victoria, Gustaf V: 3280(14)

Armour, mm

belt: 200 - 60, upper belt: 100, main turrets: 200 - 130, main barbettes: 150, secondary turrets: 125, secondary barbettes: 100, CT: 175, deck: 45 - 30

Armament

2 x 2 - 283/44 K/45 M12, 1 x 2 - 152/49 K/50 M12, 6 x 1 - 152/49 K/50 M12, 6 x 1 - 75/49 K/50 M12, 2 x 1 - 57/50 K/55 M89B, 2 x 1 - 8/80, 2 - 533 TT (beam)

Complement

427



Standard scale images

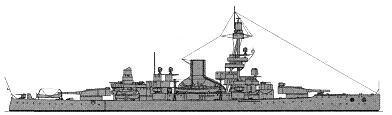

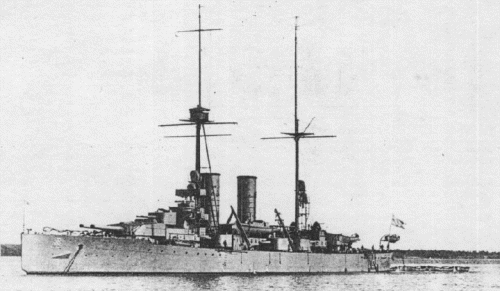

<i>Drottning Victoria</i> 1921
Drottning Victoria 1921

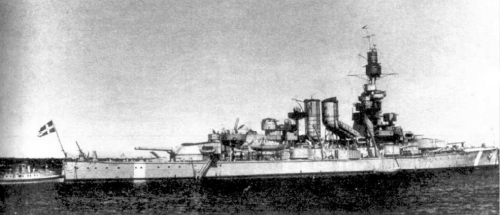

<i>Sverige</i> 1940
Sverige 1940

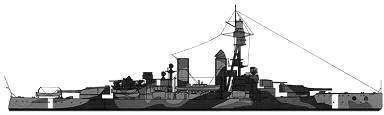

<i>Drottning Victoria</i> 1943
Drottning Victoria 1943
<i>Drottning Victoria</i> 1943
Drottning Victoria 1943

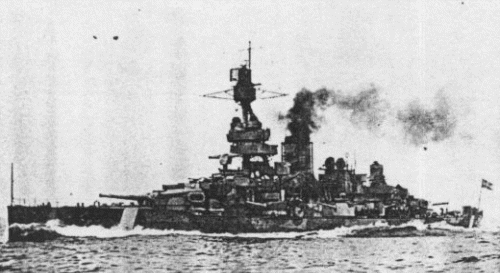

<i>Gustaf V</i> 1945
Gustaf V 1945
<i>Gustaf V</i> 1945
Gustaf V 1945


Graphics

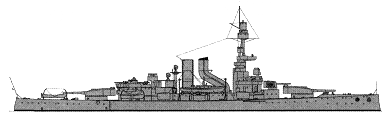

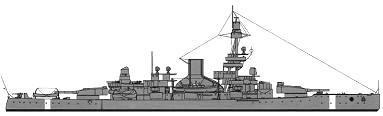

<i>Gustaf V </i>1922
Gustaf V 1922
<i>Gustaf V</i> 1943 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Gustaf V 1943 Many thanks to Wolfgang Stöhr for additional information on this page.

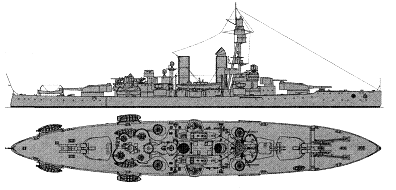

<i>Sverige</i> 1942
Sverige 1942


Ship project history


The last classical coast defence battleships in the world and the unique coast defence battleships equipped with a turbine machinery.     The history of designing of these ships goes back to 1906 when the chiefs of the Swedish Naval Forces had come to conclusion that the sizes and arms of existing coast defence ships do not answer time requirements. According to experts meaning it was required to increase displacement to 7000 - 7500 ts, that would allow to mount 283mm main artillery and adequate protection. The design of the battleship named "F" has been prepared according to new requirements . It represented strongly increased Oscar II with four 283mm guns in two end turrets and 22.5kts speed. Construction of the new ship which has received a name Sverige has been approved by parliament in 1911.     In a parallel way with designing of the ship Bofors has started designing of 283mm gun accepted by the Swedish navy in 1912 and by the right of considered for time one of best in the world. Secondary artillery has not changed in comparison with a prototype, but placed in a new fashion: one twin turret took place behind fore main turret, and remaining six guns were placed in single turrets on three aboard, as by earlier ships of Äran class. 4 anti-TB, 2 AA 75mm guns and two underwater TT also were installed.

Machinery of Sverige included 4 turbines directly connected with two shafts.

Ship were equipped with a small forecastle with a sloping deck (as on early torpedo boats), pulled to fore main turret for the purpose of seaworthiness raise.

In 1914 parliament has made a decision about a building of two more battleships of Sverige class with minor design alterations. The most appreciable appearance alterations were abandoning from ram (at the expense of some slenderness of a fore end) and other form of a forecastle. Machinery was redesigned: Gustaf V and Drottning Victoria received 2-shaft 22000hp geared steam turbines instead of turbines with a direct drive. t and the improved hull form had led to a velocity increment on 0.7kts. (From 22.5 to 23.2kts.), using of geared driven turbines even with a smaller full stock of fuel (761 against 776ts) have allowed to raise an endurance to 3280 miles (against 2720 miles at Sverige).

Protection


 Main belt of 2m in height was stretched almost on all length of the hull and was 112m long. It had 200mm thickness at 51m midship part, thinning to ship ands first to 150, and then to 60mm. The 100mm upper belt extended from fore barbette of 152mm turret to a barbette of after main turret.

Modernizations


(1924-1925), Sverige: new tripod mast with new director was fitted, fire-control centre was installed.

(1926-1927), Drottning Victoria: new tripod mast with new director was fitted, fire-control centre was installed, ship received paravanes; - 2 - 533 TT.

(1927-1930), Gustaf V: new tripod mast with new director was fitted, fire-control centre was installed, ship received paravanes, funnels were been trunked into one, main mast was cutted and moved fwd; - 6 x 1 - 75/49, 2 - 533 TT; + 2 x 2 - 75/56 K/60 M28.

(1931-1933), Sverige: ship received paravanes, fore funnel was angled aft, S-shaped, main mast was cutted and moved fwd, Westinghouse turbines were replaced by Curtis geared turbines; - 6 x 1 - 75/49, 2 - 533 TT; + 2 x 2 - 75/56 K/60 M28.

(1934-1935), Drottning Victoria: ship received paravanes, main mast was cutted and moved fwd, 6 Yarrow mixed-burning boilers were replaced by 2 oil-burning Penhöet (fuel stowage was 360ts of coal and 273ts of oil); - 6 x 1 - 75/49, 2 - 533 TT; + 2 x 2 - 75/56 K/60 M28, 3 x 1 - 25/55 K/58 M32.

(1936-1937), Gustaf V: 6 Yarrow mixed-burning boilers were replaced by 2 oil-burning Penhöet (fuel stowage was 360ts of coal and 273ts of oil); - 1 x 2 - 152/49; + 2 x 2 - 40/56 K/60 M32, 2 x 2 - 25/55 K/58 M32, 4 x 1 - 25/55 K/58 M32

(1938-1940), Sverige: all boilers were replaced by 4 oil-burning Penhöet; - 2 x 1 - 152/49; + 2 x 2 - 40/56 K/60 M32, 2 x 2 - 25/55 K/58 M32

(1940-1941), Drottning Victoria: - 2 x 1 - 152/49; + 2 x 2 - 40/56 K/60 M32, 2 x 1 - 25/55 K/58 M32

(1941-1942), Drottning Victoria: + 2 x 1 - 25/55 K/58 M32

1942, Sverige: - 2 x 2 - 25/55; + 1 x 2 - 40/56 K/60 M32, 2 x 2 - 20/63 K/66 M40

1942, Drottning Victoria: - 7 x 1 - 25/55; + 1 x 2 - 40/56 K/60 M32, 7 x 1 - 20/63 K/66 M40

1942, Gustaf V: - 2 x 2 - 25/55, 4 x 1 - 25/55; + 1 x 2 - 40/56 K/60 M32, 2 x 2 - 20/63 K/66 M40, 4 x 1 - 20/63 K/66 M40

1943, Drottning Victoria: + Swedish-built radar.

1946, Gustaf V: + British radar

Naval service


Sverige collided with submarine Svärdfisken 18/1/1942, repair has held two months. Sverige and Drottning Victoria were laid up in 1947 and Gustaf V next year. Gustaf V was scrapped last in 1970.
