SVEA coast defence ships

Thule 1917

Name	No	Builder	Laid down	Launched	Comp	Fate
Svea		Lindholmen, Göteborg	3/1884	12/12/1885	20/9/1886	submarine depot ship 1920
Göta		Lindholmen, Göteborg	1888	16/9/1889	1891	stricken 1923
Thule		Bergsund, Stockholm	1891	4/3/1893	1/12/1893	stricken 1923

Displacement normal, t

Svea: 3051

Göta: 3238

Thule: 3248

Displacement full, t

Svea: 3273
Göta, Thule: 3300

Length, m

Svea: 75.7 wl

Göta: 78.8 wl

Thule: 79.5 wl

Breadth, m

Svea: 14.8

Göta, Thule: 14.6

Draught, m

Svea: 5.18 max

Göta, Thule: 5.11 max

No of shafts

2

Machinery

VC, 6 cylindrical boilers

Power, h. p.

Svea: 3640

Göta, Thule: 4700

Max speed, kn

Svea: 14.7

Göta, Thule: 16

Fuel, t

coal 288 - 300

Armour, mm

Svea: compound; belt: 297 - 147, turret: 297 - 246, barbette: 297 - 147, deck: 49

Göta, Thule: Creusot steel; belt: 293 - 198, turret: 293 - 243, barbette: 268, deck: 49

Armament

Svea: 1 x 2 - 254/32 M85, 4 x 1 - 152/28 M83, 1 x 2 - 37/40 M84, 4 x 4 - 25/35 M77, 1 x 1 - 12/78 M75, 1 - 381 TT (bow)

Göta: 1 x 2 - 254/32 M89A, 4 x 1 - 152/34 M89, 5 x 1 - 57/48 M89, 6 x 4 - 25/35 M77, 4 x 1 - 25/60 M84, 3 - 381 TT (1 bow, 2 beam)
Thule: 1 x 2 - 254/32 M89A, 4 x 1 - 152/34 M89, 5 x 1 - 57/46 M92, 4 x 4 - 25/35 M77, 4 x 1 - 25/60 M84, 2 - 450 TT (beam)

Complement

252

Ship project history: The first seaworthy coastal battleships of the Swedish Navy.

Protection: Belt protected amidships part only.

Modernizations: 1890, Svea: + 2 x 1 - 57/50 M89

1896, Svea: - 4 x 1 - 152/28; + 4 x 1 - 120/45 M94

1901, Göta; 1903, Thule; 1904, Svea: were completely reconstructed, armament was fully changed to 1 x 1 - 210/44 M98, 7 x 1 - 152/44 M98, 11 x 1 - 57/55 M89B; stem was projected forward. All 6`` guns were mounted in single turrets with 115mm protection, 210mm gun received turret protected by 190 - 140mm Krupp nickel steel, barbette had 190mm protection.

Naval service: Svea was converted to submarine depot ship 1919 - 1921 and served in this role until 1941, sold for scrap in 1944. Göta was stricken in 1923 but converted in 1926 to barrack ship and sold only in 1938. Thule was stricken also in 1923, also became a barrack ship in 1926 but from 1928 she was used as artillery and aircraft target, sold in 1930s.

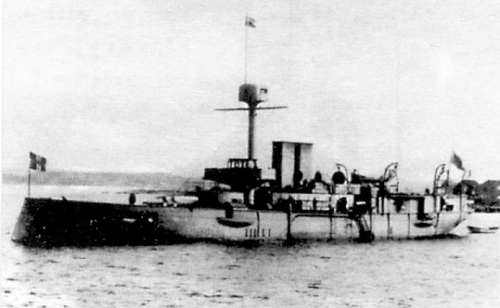

Göta 1896

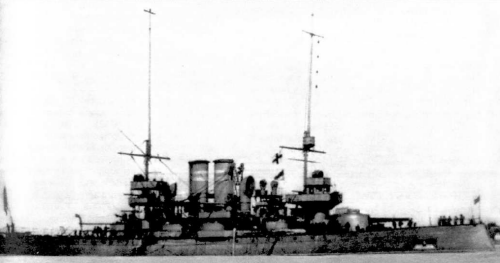

Svea 1904
