JUAN CARLOS I assault ship (2010)





Juan Carlos I 2011

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Juan Carlos I L61   Navantia, Ferrol 24/5/2005 10/3/2008 30/9/2010 in service (2019)


Technical data


Displacement standard, t

19300

Displacement full, t27560
Length, m

205.7 pp 231.4 oa

Breadth, m

29.5 wl 32.0 oa

Draught, m

6.80 mean hull

No of shafts2 Siemens-Schottel azipods
Machinery

CODLAG: 1 General Electric LM-2500 gas turbine generator + 2 MAN32/40 16V diesel-generators, 2 electric motors

Power, h. p.

26860 + 20890 = 30500

Max speed, kts

21

Fuel, t

gas turbine oil + diesel oil

Endurance, nm(kts)9000(15)
Armament

4 x 1 - 20/90 GAM-B01, 4 x 1 - 12.7/90, up to 18 aircraft (AV-8B Harrier II+ attackers, CH-47, NH-90, AB-212 helicopters)

Military load4 LCM-1E or 2 LCAC, 6000t cargo including 46 tanks, 1200 troops
Electronic equipment

Lanza, 3x Aries, Vision Master, Dorna radars, Elnath Mk 9500, Aldebarán, Regulus ECM suites, 6x Mk 36 SRBOC decoy RL, SLQ-25 Nixie torpedo decoy, Scomba CCS

Complement247


Standard scale images

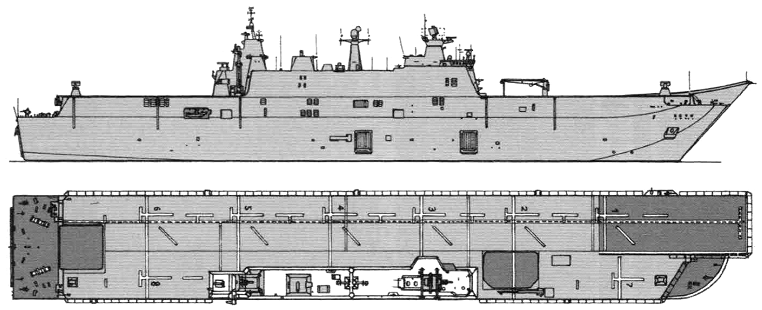

<i>Juan Carlos I </i>as planned with 2 RAM SAMs and 4 20mm guns
Juan Carlos I as planned with 2 RAM SAMs and 4 20mm guns


Graphics

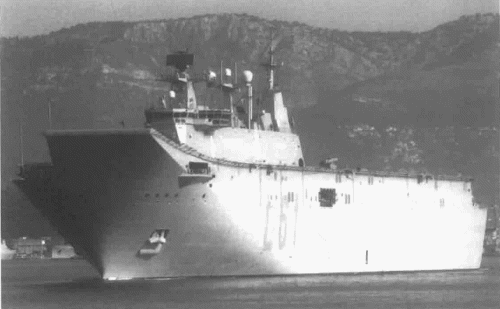

<i>Juan Carlos I</i> 2011
Juan Carlos I 2011


Ship project history


Originally known as the Strategic Projection ship. The Spanish government formally authorized construction in 2003. lzar (later Navantia) received the design contract 5/2/2003. Largest warship ever built for Spain. Has an island superstructure offset to starboard on the full-length helicopter deck with a 12° sky-jump. Have a surface-piercing bow bulb. The 69.3x16.8m floodable stern well can accommodate four LCM-1E sized landing craft or two LCAC. Has 3450m² parking area for helicopters, vehicles, and containerized cargo, including 1400m² for tanks and 2050m² for other vehicles. Has extensive medical facilities including X-ray and operating rooms. Aviation features include a 202m-long flight deck with landing spots for either four CH-47, six NH-90, or eight AB-212 helicopters and OLS optical landing control system. 185m-long (1000m²) hangar can accommodate 12 helicopters or eight EAV-8B Harrier V/STOL fighter-attack aircraft. There are two 25t-capacity aircraft elevators. A point defense SAM system may be fitted in the future. Ship can carry 1200 passengers, including 103 persons of marine HQ, 172 persons of aviation group, 23 HQ and 902 marine troops. Ship is equipped with large hospital facility (580m²).

Modernizations


None.

Naval service


No significant events.
