V20 motor patrol boats (1942-1944/1946)

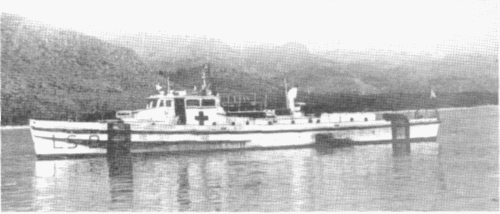

LS2 1944

Ships


Names Builders Completed Losses Transfers Discarding

V20 (ex-LS1)

V21 (ex-LS3)

V22 (ex-LS2)

Kröger, Warnemünde, Germany: V20-22

1942-1944  // 2-3/1946: V20-22

none

none

1949: V22

1964: V20, 21



Technical data


Displacement standard, t

42

Displacement full, t

60

Length, m

26.2

Breadth, m

4.66

Draught, m

1.38

No of shafts

2

Machinery

2 MWM diesels

Power, h. p.700
Max speed, kts

18

Fuel, t

diesel oil 5.3

Endurance, nm(kts)457(18)
Armament

2 x 1 - 20/65 C/38

Complement

14



Standard scale images


<i>LS1 </i>1944
LS1 1944


Graphics


<i>LS2 </i>1944
LS2 1944


Project history

Rescue launches of Lüftwaffe of FL.B600 type, gained by Spain for control over neutrality regime and rescue of pilots fallen at sea around the Balearic islands. In February-March, 1946 they were converted to patrols.

Modernizations

None.

Naval service

No significant events.
