LAZAGA fast gun attack craft (1975-1977)

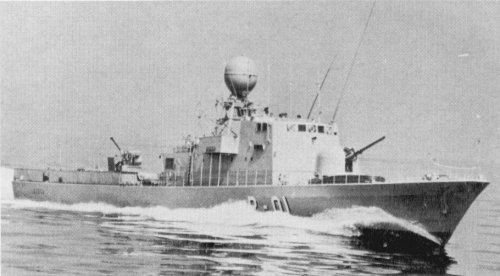

Lazaga 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Lazaga P01   Lürssen, Vegesack 5.1974 10.10.1974 16.7.1975 stricken 6.1993
Alsedo P02   Bazán, La Carraca 10.5.1974 8.1.1976 28.2.1977 stricken 6.1993
Cadarso P03   Bazán, La Carraca 24.5.1974 8.1.1975 10.7.1976 stricken 6.1993, to Colombia (CTCIM Jorge Enrique Márquez Duran)
Villaamil P04   Bazán, La Carraca 8.1.1975 24.5.1975 26/41977 stricken 6.1993
Bonifaz P05   Bazán, La Carraca 8.1.1975 24.5.1975 11.7.1977 stricken 6.1993
Recalde P06   Bazán, La Carraca 24.5.1975 9.11.1975 17.12.1977 stricken 6.1993, to Colombia (Capitán Pablo José de Porto)


Technical data


Displacement standard, t

275

Displacement full, t

393

Length, m

58.1

Breadth, m

7.60

Draught, m

2.60

No of shafts

2

Machinery

2 MTU-Bazán MA-16V956 TB91 diesels

Power, h. p.

8000

Max speed, kts

28

Fuel, t

diesel oil 112

Endurance, nm(kts)6100(17)
Armament

1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Bofors 350, 2 x 1 - 20/90 GAM-B01, fitted for 2 x 3 - 324 Mk 31 TT, 2 DCR

Electronic equipmentWM22/41, TM626 radars, CSEE e/o director, ECM suite, fitted for ELAC sonar
Complement

30



Standard scale images


<i>Lazaga</i> 1980
Lazaga 1980


Graphics


<i>Lazaga </i>1979
Lazaga 1979


Project history

Ordered in 1972 to the basic Lürssen T57 design. For fishery protection in peacetime, but being relieved in these duties by the new Anaga class. Planned Harpoon SSM never fitted; ASW weapons not installed in all units.

Modernizations

None.

Naval service

No significant events.
