BARCELÓ fast gun attack craft (1976-1977)





Barceló 1976

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Barceló P11   Lürssen, Vegesack 3.3.1975 10.10.1975 20.3.1976 stricken 12.2009
Laya P12   Bazán, La Carraca 9.5.1975 18.12.1975 23.12.1976 stricken 2.2010
Javier Quiroga P13   Bazán, La Carraca 9.5.1975 18.12.1975 4.4.1977 stricken 4.2005
Ordóñez P14   Bazán, La Carraca 9.2.1976 10.9.1976 7.6.1977 stricken 9.2009
Acevedo P15   Bazán, La Carraca 9.2.1976 10.9.1976 14.7.1977 stricken 1.2009
Cándido Pérez P16   Bazán, La Carraca 1976 3.3.1977 25.11.1977 stricken 4.2009


Technical data


Displacement standard, t110
Displacement full, t

134

Length, m

36.2 pp 43.2 oa

Breadth, m

5.80

Draught, m

1.75 hull 2.15 propellers

No of shafts

2

Machinery

2 MTU-Bazán 16V538 TB90 diesels

Power, h. p.

7320

Max speed, kts

36.5

Fuel, t

diesel oil 18

Endurance, nm(kts)1200(16)
Armament

1 x 1 - 40/70 Bofors 350, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90, fitted for 2 - 533 TT

Electronic equipmentRaytheon 1620 radar, CSEE e/o director
Complement

19



Standard scale images


<i>Barceló</i> 1980
Barceló 1980


Graphics

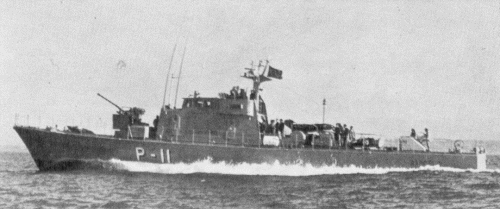

<i>Barceló </i>1976
Barceló 1976

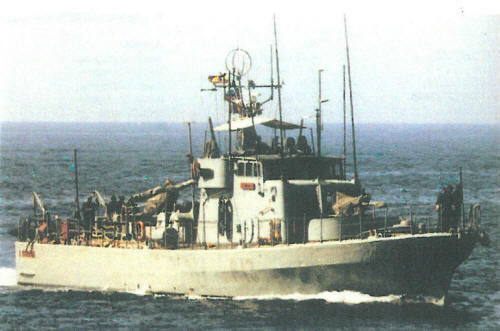

<i>Javier Quiroga </i>2003
Javier Quiroga 2003


Project history

Ordered in 1973. For fishery protection in peacetime. TT were not fitted.

Modernizations

None.

Naval service

No significant events.
