PELAYO barbette ship (1888)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Pelayo     F C de la Méditerranée, La Seyne, France 2/1886 5.2.1887 9.9.1888 TS 1920, discarded 8.1924


Technical data


Displacement normal, t

9745

Displacement full, t9950
Length, m

102.0 wl 105.1 oa

Breadth, m

20.2

Draught, m

7.58 norm 8.69 max

No of shafts

2

Machinery

4 VC, 12 return-tube boilers

Power, h. p.

9600

Max speed, kts

16.7

Fuel, t

coal 650 norm 800 max

Endurance, nm(kts)3000(10)
Armour, mm

Creusot steel; belt: 450 - 300, barbettes: 400 - 300, shields: 80, CT: 155, deck: 70 - 50

Armament

2 x 1 - 320/35 Hontoria M1883, 2 x 1 - 280/35 Hontoria M1883, 1 x 1 - 160/35 Hontoria M1883, 12 x 1 - 120/35 Hontoria M1883, 3 x 1 - 57/40 Hotchkiss, 13 x 1 - 37/20 Hotchkiss, 4 x 5 - 37/17 Hotchkiss, 7 - 381 TT (1 stern, 6 beam)

Complement

520



Standard scale images

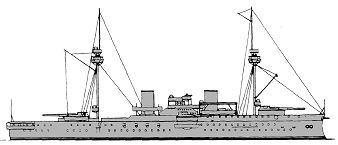

<i>Pelayo </i>1918
Pelayo 1918


Project history

Design was based on the basis of contemporary French battleship Marceau but with reduced draught. Originally she had 372 m2 of sails but soon after completion ship received military masts. Main guns were mounted in barbettes of Canet system, 160mm gun was a bow chaser.

Ship protection

 Main belt was 2.1m high amidships (0.6m above wl), hull had double bottom.

Modernizations

1897: boilers were replaced by 16 Niclausse ones (9473hp, 16kts, 676t of coal, 2540(10)nm); - 1 x 1 - 160/35, 12 x 1 - 120/35, 3 x 1 - 57/40, 13 x 1 - 37/20, 4 x 5 - 37/17; + 9 x 1 - 140/36 Hontoria M1883, 5 x 1 - 57/42 Nordenfelt, 14 x 1 - 37/27 Maxim; normal displacement was 9890t

1904: - 4 - 381 TT (beam)

1910: - 3 - 381 TT

Naval service

Pelayo served as TS since 1920.
