ENSEIGNE DE VAISSEAU ALPHONSE FAYE patrol boats (2004-2005)

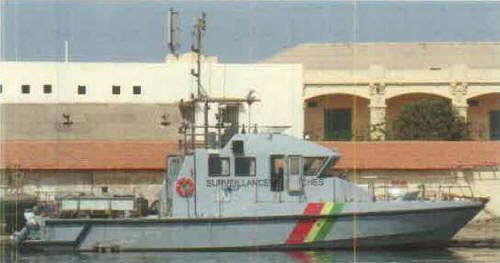

Enseigne de Vaisseau Alphonse Faye 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Enseigne de Vaisseau Alphonse Faye Baye Sogui |
CNB-Bénéteau, L'Herbaudière, France: Enseigne de Vaisseau Alphonse Faye, Baye Sogui |
2004: Enseigne de Vaisseau Alphonse Faye 2005: Baye Sogui |
none |
none |
in service (2020): Enseigne de Vaisseau Alphonse Faye, Baye Sogui |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 42 |
| Length, m | 17.3 pp 20.0 oa |
| Breadth, m | 5.29 |
| Draught, m | 1.45 |
| No of shafts | 2 |
| Machinery | 2 MAN V12 diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(18) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 8 |
Graphics
Enseigne de Vaisseau Alphonse Faye 2011
Project history
French Elorn (RPB20) class. One firefighting monitor, 4.7m RIB on stern ramp.
Modernizations
None.
Naval service
No significant events.
