"Series IX-bis, IX-bis-2" submarines (S-4) (1939 - 1948)

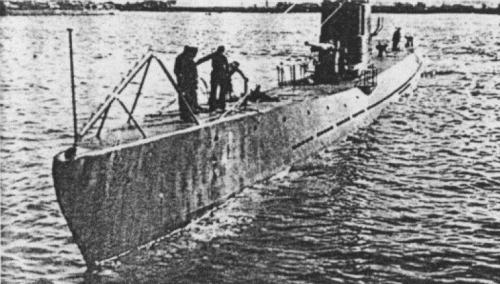

S-9

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
С-4 [S-4] (ex-Н-4 [N-4])   277 189 Yd (Ordzhonikidze Yd), Leningrad 1.1936 17.9.1936 10.1939 sunk 6.1.1945 "IX-bis"
С-5 [S-5] (ex-Н-5 [N-5])   278 189 Yd (Ordzhonikidze Yd), Leningrad 12.1935 16.5.1937 10.1939 sunk 28.8.1941 "IX-bis"
С-6 [S-6] (ex-Н-6 [N-6])   279 189 Yd (Ordzhonikidze Yd), Leningrad 12.1935 31.3.1938 10.1939 sunk 21.8.1941 "IX-bis"
С-7 [S-7] (ex-Н-7 [N-7])   236 112 Yd (Krasnoye Sormovo Yd), Gorkiy 12.1936 5.4.1937 6.1940 sunk 21.10.1942 "IX-bis"
С-8 [S-8] (ex-Н-8 [N-8])   237 112 Yd (Krasnoye Sormovo Yd), Gorkiy 12.1936 5.4.1937 6.1940 sunk 12-14.10.1941 "IX-bis"
С-9 [S-9] (ex-Н-9 [N-9])   241 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1937 20.4.1938 10.1940 sunk 13.8.1943 "IX-bis"
С-10 [S-10] (ex-Н-10 [N-10])   242 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1937 20.4.1938 12.1940 sunk 28.6.1941 "IX-bis"
С-11 [S-11]   245 112 Yd (Krasnoye Sormovo Yd), Gorkiy 10.1937 24.4.1938 6.1941 sunk 2.8.1941 "IX-bis"
С-12 [S-12]   246 112 Yd (Krasnoye Sormovo Yd), Gorkiy 10.1937 20.4.1938 7.1941 sunk 1.8.1943 "IX-bis"
С-13 [S-13]   263 112 Yd (Krasnoye Sormovo Yd), Gorkiy 10.1938 25.4.1939 7.1941 TS 9.1954, stricken 12.1956 "IX-bis"
С-31 [S-31]   347 198 Yd (Marti Yd), Nikolayev 10.1937 22.2.1939 6.1940 charging plant 3.1955 "IX-bis"
С-32 [S-32]   348 198 Yd (Marti Yd), Nikolayev 10.1937 27.4.1939 6.1940 sunk 26.6.1942 "IX-bis"
С-33 [S-33]   349 198 Yd (Marti Yd), Nikolayev 11.1937 30.5.1939 11.1940 charging plant 4.1955 "IX-bis"
С-34 [S-34]   350 198 Yd (Marti Yd), Nikolayev 11.1937 2.9.1939 3.1941 lost 11.1941 "IX-bis"
С-35 [S-35]   360 198 Yd (Marti Yd), Nikolayev 2.1940 17.7.1941 2.1948 charging plant 2.1956 "IX-bis"
С-51 [S-51]   284 189 Yd (Ordzhonikidze Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok 4.1937 30.8.1940 11.1941 hulk 9.1954 "IX-bis"
С-52 [S-52]   285 189 Yd (Ordzhonikidze Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok 4.1937 30.8.1940 6.1943 to China 8.1954 (长城 403 新中國 [Changcheng 403 Xin Zhongguo]) "IX-bis"
С-53 [S-53]   286 189 Yd (Ordzhonikidze Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok 9.1938 30.10.1941 1.1943 to China 8.1954 (长城 404 防禦 [Changcheng 404 Fangyu]) "IX-bis"
С-54 [S-54]   403 194 Yd (Marti Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok 11.1936 5.11.1938 12.1940 sunk 7-20.3.1944 "IX-bis"
С-55 [S-55]   404 194 Yd (Marti Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok 11.1936 27.11.1939 7.1941 sunk 6-23.12.1943 "IX-bis"
С-56 [S-56]   405 194 Yd (Marti Yd), Leningrad // 202 Yd (Dalzavod Yd), Vladivostok 11.1936 25.12.1939 10.1941 charging plant 3.1955 "IX-bis"
С-101 [S-101]   243 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1937 20.4.1938 12.1940 stricken 2.1956 "IX-bis"
С-102 [S-102]   244 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1937 20.4.1938 12.1940 charging plant 3.1955 "IX-bis"
С-14 [S-14], 6.1943- С-14 Героический Севастополь [S-14 Geroicheskiy Sevastopol']   264 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 638 Yd (Stalin Yd), Astrakhan 9.1938 25.4.1939 4.1942 hulk 12.1955 "IX-bis-2" and incomplete boats
С-15 [S-15], 1944- С-15 Колхозница [S-15 Kolkhoznitsa]   271 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 638 Yd (Stalin Yd), Astrakhan 8.1939 24.4.1940 12.1942 charging plant 12.1955 "IX-bis-2" and incomplete boats
С-16 [S-16], 4.1944- С-16 Герой Советского Союза Нурсеитов [S-16 Geroy Sovetskogo Soyuza Nurseitov]   272 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 638 Yd (Stalin Yd), Astrakhan 8.1939 24.4.1940 2.1943 charging plant 12.1955 "IX-bis-2" and incomplete boats
С-17 Советская Сванетия [S-17 Sovetskaya Svanetiya]   273 112 Yd (Krasnoye Sormovo Yd), Gorkiy 8.1939 24.4.1940 4.1945 charging plant 12.1955 "IX-bis-2" and incomplete boats
С-18 [S-18]   274 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 638 Yd (Stalin Yd), Astrakhan 8.1939 24.4.1940 6.1945 hulk 2.1956 "IX-bis-2" and incomplete boats
С-19 [S-19]   132 196 Yd (Sudomekh Wks), Leningrad // 638 Yd (Stalin Yd), Astrakhan 9.1939 14.3.1941 2.1944 test ship 12.1955 "IX-bis-2" and incomplete boats
С-20 [S-20]   133 196 Yd (Sudomekh Wks), Leningrad // 638 Yd (Stalin Yd), Astrakhan 9.1939 14.3.1941 2.1945 test ship 2.1956 "IX-bis-2" and incomplete boats
С-21 [S-21]   134 196 Yd (Sudomekh Wks), Leningrad // 638 Yd (Stalin Yd), Astrakhan 12.1939 25.4.1941 3.1946 charging plant 3.1957 "IX-bis-2" and incomplete boats
С-22 [S-22]   295 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 638 Yd (Stalin Yd), Astrakhan 6.1940 2.5.1941 5.1946 charging plant 3.1955 "IX-bis-2" and incomplete boats
С-23 [S-23]   296 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1940 2.5.1941 6.1947 charging plant 4.1958 "IX-bis-2" and incomplete boats
С-24 [S-24]   297 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1940 2.5.1941 12.1947 to China 6.1955 (长城 401 [Changcheng 401]) "IX-bis-2" and incomplete boats
С-25 [S-25]   298 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1940 2.5.1941 3.1948 to China 6.1955 (长城 402 [Changcheng 402]) "IX-bis-2" and incomplete boats
С-26 [S-26]   299 112 Yd (Krasnoye Sormovo Yd), Gorkiy 6.1940 2.5.1941 3.1948 charging plant 4.1958 "IX-bis-2" and incomplete boats
С-36 [S-36]   361 198 Yd (Marti Yd), Nikolayev 2.1940 --- --- destroyed on the stocks 15.8.1941 "IX-bis-2" and incomplete boats
С-37 [S-37]   362 198 Yd (Marti Yd), Nikolayev 11.1940 --- --- destroyed on the stocks 15.8.1941 "IX-bis-2" and incomplete boats
С-38 [S-38]   363 198 Yd (Marti Yd), Nikolayev 2.1941 --- --- destroyed on the stocks 15.8.1941 "IX-bis-2" and incomplete boats
С-103 [S-103]   265 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 638 Yd (Stalin Yd), Astrakhan 9.1938 25.4.1939 6.1942 stricken 12.1955 "IX-bis-2" and incomplete boats
С-104 [S-104]   266 112 Yd (Krasnoye Sormovo Yd), Gorkiy // 638 Yd (Stalin Yd), Astrakhan 9.1938 25.4.1939 9.1942 charging plant 3.1955 "IX-bis-2" and incomplete boats


Technical data


Displacement standard, t



Displacement normal, t

S-4 - 30: 844 / 1077

S-31 - 47: 837 / 1085

S-51 - 56: 856 / 1090

S-101 - 104: 845 / 1078

Length, m

77.7

Breadth, m

6.40

Draught, m

S-4 - 30: 3.98

S-31 - 47: 4.35

S-51 - 56: 4.04

S-101 - 104: 4.03

No of shafts

2

Machinery

2 1D diesels / 2 P72/35 electric motors

Power, h. p.

4000 / 1100

Max speed, kts

S-4 - 30: 19.4 / 9.5

S-31 - 47: 19.8 / 8.9

S-51 - 56: 18.9 / 8.6

S-101 - 104: 19 / 10.1

Fuel, t

diesel oil 110

Endurance, nm(kts)

7500(8.4) / 132(2.4)

Armament

1 x 1 - 100/49 B-24, 1 x 1 - 45/43 21K, 6 - 533 TT (4 bow, 2 stern, 12)

S-21-26, 35: 1 x 1 - 100/51 B-24, 1 x 1 - 1 x 1 - 12.7/79, 6 - 533 TT (4 bow, 2 stern, 12)

Electronic equipment

S-4-16, 31-35, 51-56, 101-104: Mars-12 hydrophone

S-17-19: type 129 sonar, Mars-12 hydrophone

S-20-26: Tamir-5L sonar, Mars-24K hydrophone

Complement

46

Diving depth operational, m

80



Standard scale images


<i>S-51</i> 1941
S-51 1941


Graphics


<i> S-9</i>
S-9


Project history

In the end of 1932 Soviet delegation visited German-Dutch "IvS" designing bureau, where it was informed about designs of modern submarines, and in the next January Soviet representatives visited trials of Spanish submarine E1 (later sold to Turkey as Gür). The contract with Deschimag was signed in April, 1933 on working out of the design of new medium submarine. To the beginning of 1935 drawings were ready. A year later mass building of IX-bis series has begun. They were originally designated as N (Nemetsky [German]) class, since October, 1937 as S (Sredniy [Medium]) class.     Saddle-tank hull, with mixed construction (riveted pressure hull and welded light hull). Maximal diving depth was 100m. S-1 and 2 received diesels made by MAN, remaining boats had domestic-made supercharged engines. Fore gun on IX series boats took places behind a streamline shield, on series IХ-бис this shield was removed. Since 1941 the CT on new boats was fulfilled covered, and on earlier submarines it was later covered.

Modernizations

1940 - 1943, some boats: - 1 x 1 - 45/43; + 1 x 1 - 12.7/79

1943, S-54, S-55; 1944, S-4, S-13, S-56, S-101: + type 129 sonar

1943, S-54: + type 286M radar

Summer 1944, S-19: - 1 x 1 - 45/43; + 1 x 1 - 25/72 72K.

1944, S-52: - Mars-12 hydrophone; + Mars-24K hydrophone

1945, S-52: + type 291W radar, Tamir-5L sonar

1945, S-53: + Tamir-5L sonar

Naval service

S-4 was sunk 4.1.1945 by ramming of German torpedo boat T3 in Danzig Bight. S-5 was lost 28.8.1941 on a mine en route from Tallin to Kronshtadt. S-6 was lost between 6 and 24.8.1941 in central part of Baltic Sea. S-7 was sunk 21.10.1942 by Finnish submarine Vesihiisi at Alands. S-8 was lost in October, 1942 on a mine off Oland. S-9 was lost between 12 and 14.8.1943 in Gulf of Finland, possibly on a mine. S-10 was lost 27.6.1941 on a mine at Libava. S-11 was lost 2.8.1941 on a mine in Soela-Vjajn Strait. S-12 was lost 2-3.8.1943 in Gulf of Finland.     S-32 was sunk 26.6.1942 by German aircraft S off Yalta. S-34 was lost between 9 and 13.11.1941 at Sozopol, possibly on a mine.     S-54 was lost after 5.3.1944, possibly on a mine in the Kongs-fjord. S-55 was lost after 8.12.1943; possibly on a mine off Tana-fiord.
