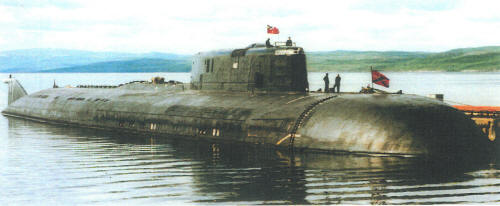

K-266 Oriol 2001

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
К-148 [K-148], 4.1993- К-148 Краснодар [K-148 Krasnodar]		617	Northern Yd, Severodvinsk	22.7.1982	3.3.1985	30.9.1986	stricken 7.1998
К-173 [K-173], 4.1993- К-173 Красноярск [K-173 Krasnoyarsk]		618	Northern Yd, Severodvinsk	4.8.1983	27.3.1986	31.12.1986	for disposal 2013
К-132 [K-132], 4.1993- К-132 Иркутск [K-132 Irkutsk]	929	619	Northern Yd, Severodvinsk	8.5.1985	29.12.1987	30.12.1988	in service (2019)
К-119 [K-119], 4.1993- К-119 Воронеж [K-119 Voronezh]	812	636	Northern Yd, Severodvinsk	25.2.1986	16.12.1988	29.12.1989	in service (2019)
К-410 [K-410], 4.1993- К-410 Смоленск [K-410 Smolensk]	816	637	Northern Yd, Severodvinsk	9.12.1986	20.1.1990	22.12.1990	in service (2019)
К-442 [K-442], 4.1993- К-442 Челябинск [K-442 Cheliabinsk]	904	638	Northern Yd, Severodvinsk	21.5.1987	18.6.1990	28.12.1990	in service (2019)
К-456 Касатка [K-456 Kasatka], 3.1996- К-456 Вилючинск [K-456 Viliuchinsk], 1.2011- К-456 Тверь [K-456 Tver']	920	649	Northern Yd, Severodvinsk	9.2.1988	28.6.1991	18.8.1992	in service (2019)
К-266 [K-266], 4.1993- К-266 Орёл [K-266 Oriol]	847	650	Northern Yd, Severodvinsk	19.1.1989	22.5.1992	30.12.1992	in service (2019)
К-186 Омск [K-186 Omsk]	947	651	Northern Yd, Severodvinsk	13.7.1989	10.5.1993	10.12.1993	in service (2019)
К-141 Курск [K-141 Kursk]		662	Northern Yd, Severodvinsk	22.3.1990	16.5.1994	30.12.1994	explosion 12.8.2000
К-150 Томск [K-150 Tomsk]	932	663	Northern Yd, Severodvinsk	27.8.1991	20.7.1996	30.12.1996	in service (2019)
К-329 Белгород [K-329 Belgorod]		664	Northern Yd, Severodvinsk	24.7.1992	---	---	restarted under pr. 09852
К-135 Волгоград [K-135 Volgograd]		675	Northern Yd, Severodvinsk	2.9.1993	---	---	suspended 1.1998
К-160 Барнаул [K-160 Barnaul]		676	Northern Yd, Severodvinsk	1994	---	---	suspended 1998

Technical data

Displacement standard, t
Displacement normal, t	14820 / 19254
Length, m	154.8
Breadth, m	18.2 hull 22.0 max
Draught, m	9.30
No of shafts	2
Machinery	617: 2 OK-9DM geared steam turbines sets, 2 OK-650M.01 nuclear reactors others: 2 OK-9DM geared steam turbines sets, 2 OK-650M.02 nuclear reactors
Power, h. p.	100000
Max speed, kts	14.6 / 33.4
Fuel, t	nuclear
Endurance, nm(kts)	practically unlimited
Armament	24 x 1 Granit SSM (24 P-50 (3M45)), 2 - 650 TT (10, inc. URPK-7 Veter SSM/ASuM (86R, 88R)), 4 - 533 TT (18, inc. URPK-6 Vodopad-PL SSM/ASuM (83R, 84R), Shkval rocket torpedoes), 1 x 1 Igla SAM (16 9M39)
Electronic equipment	617, 618: MRKP-58 Radian radar, MGK-500 Skat-KS sonar suite, MG-519M Arfa-M, MG-512 Vint-M sonars, MRP-21A ECM suite, MVU-132 Omnibus-949 CCS, Korall satellite-based targeting system others: MRKP-59 Radian-U radar, MGK-540 Skat-3 sonar suite, MG-519 Arfa, MG-512 Vint-M sonars, MRP-21A ECM suite, MVU-132 Omnibus-949 CCS, Korall-B1 satellite-based targeting system
Complement	109
Diving depth operational, m	420

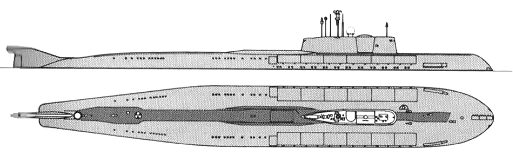

Standard scale images

Graphics

Project history

These are, In effect, successors to Project 675, capable of launching the next-generation Granit missile while submerged. They were originally to have worked on the basis of US-A and US-P radar satellite data (transmitted through the Korall system antenna in their sails), but this satellite system, Legenda is now gradually collapsing. They can also obtain targeting information via a towed VLF buoy housed abaft the sail. The missiles are in tubes canted 40 degrees to the vertical, one door covering each pair. As in Projects 661 and 670, the missiles occupy the space between tye inner and outer hulls; inner hull volume must be somewhat limited (standoff is about 3.5m); reported pressure hull diameter is 8.5m. The torpedo room forward may therefore not have much greater capacity than that of a Project 671RTM.

Only two submarines were built under the Project 949, all others were laid down under modified Project 949A with one additional compartment. K-329 Belgorod, laid down in 1992, was re-laid 20.12.2012 under Project 09852 as submarine carrying 4 long-range drone submarines

Modernizations 11.

2011, K-119 Voronezh; 7.2013, K-410 Smolensk; 2014, K-150 Tomsk; 2019, K-442 Cheliabinsk; 2020, K-456 Tver' , K-132 Irkutsk under Project 949AM: - 24 x 1 Granit SSM, MGK-540 Skat-3 sonar suite, MVU-132 Omnibus-949 CCS; + 24 x 3 Oniks SSM / Kalibr-PL SSM/CruM (72 P-160 (3M55) / 3M14 / 3M54), MGK-540M Kizhuch-949AM sonar suite, 3Ts-30.0M Banknot-M targeting system, Omnibus-M CCS

Naval service

K-141 Kursk was lost with all hands (118 men) in Barents Sea 12.8.2000 after explosion of own torpedoes.
