SIVUCH gunboats (1884 - 1886)





Bobr

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Сивуч [Sivuch]     Bergsunds, Stockholm, Sweden 4.1884 2.8.1884 11.1884 scuttled 2.8.1904
Бобр [Bobr]     Crichton, Abo 1.1884 22.4.1885 1.1886 sunk 26.12.1904


Technical data


Displacement normal, t

950

Displacement full, t

Bobr: 1187

Sivuch: 1134

Length, m

57.1 wl 60.3 oa

Breadth, m

10.7

Draught, m

Bobr: 3.70 max

Sivuch: 3.50 max

No of shafts

2

Machinery

2 HC, 6 cylindrical boilers

Power, h. p.

1100

Max speed, kts

11

Fuel, t

coal 180 - 200

Endurance, nm(kts)
Armour, mmsteel; deck: 13
Armament

1 x 1 - 229/27 obr. 1877, 1 x 1 - 152/25 obr. 1877, 6 x 1 - 107/17 9pdr obr. 1877, 1 x 1 - 63/17 Baranovski, 4 x 5 - 37/17 Hotchkiss

Complement

188



Standard scale images


<i>Bobr</i> 1904
Bobr 1904


Graphics

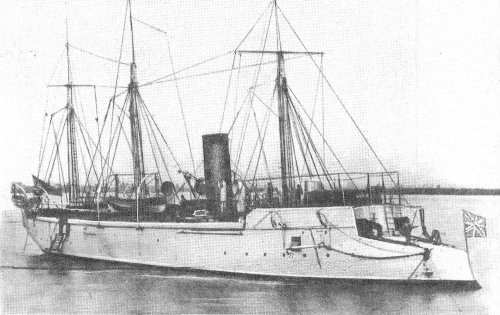

<i>Bobr</i>
Bobr


Project history

Flat-bottomed ships with fine bow lines and originally brig-rigged. The 229mm was mounted as a bow chaser with 36° training on either side and the 152mm right aft with a total arc of 270°. They were later given three masts.

Modernizations

None.

Naval service

Sivuch was blown up by own crew on Liao river near Sanchahe 2.8.1904 to avoid capture by Japanese. Bobr was 2.11.1904 badly damaged by shells of Japanese field guns in Port Arthur harbour, disarmed and demolished by own crew and finally sank 26.12.1904 by Japanese field guns.
