SOVIET/RUSSIAN NAVY (USSR/RUSSIA)

MINE WARFARE SHIPS

T-43 minesweepers (project 254) (1948 - 1954)

T-424 minesweepers (project 254K) (1952 - 1955)

T-415 minesweepers (project 254M) (1955 - 1957)

T-9 minesweepers (project 254A/MA) (1957 - 1958)

T-43 1948

T-419 1952

T-505 1955

MT-520 1979

KVN-17 1985

Name No Builder Laid down Launched Comp Fate
Project 254
T-43 90 363 Yd, Pontonnyy 7/12/1947 1/10/1948 29/12/1948 to China 6/1954 (366)
T-44, 5/1966- MT-44 91 363 Yd, Pontonnyy 3/5/1948 31/12/1948 12/9/1949 test vessel 6/1970
T-45 92 363 Yd, Pontonnyy 24/10/1948 30/7/1949 19/11/1949 to China 6/1954 (367)
T-46, 3/1963- <Dmitriy Lysov> 93 363 Yd, Pontonnyy 30/10/1948 14/8/1949 29/11/1949 stricken 8/1972
T-47 105 363 Yd, Pontonnyy 30/12/1948 28/9/1949 28/12/1949 rescue vessel 3/1957
T-48, 5/1966- MT-48 106 363 Yd, Pontonnyy 28/2/1949 11/10/1949 30/12/1949 training hulk 9/1974
T-91, 5/1966- MT-91 110 363 Yd, Pontonnyy 27/4/1949 30/10/1949 31/5/1950 training hulk 8/1983
T-92, 5/1966- MT-92 111 363 Yd, Pontonnyy // 370 Yd, Leningrad 12/5/1949 21/10/1949 31/12/1949 repair ship 7/1981
T-93 112 363 Yd, Pontonnyy 27/4/1949 1950 --- // 1950 completed as test vessel
<Aleksandr Nikolaev> (ex-T-94) 113 363 Yd, Pontonnyy 10/9/1949 10/6/1950 30/6/1950 stricken 12/1966
T-95 114 363 Yd, Pontonnyy 23/12/1949 16/6/1950 31/7/1950 stricken 4/1965
T-96, 5/1966- MT-96 115 363 Yd, Pontonnyy 27/2/1950 26/6/1950 19/8/1950 stricken 5/1970
T-97, 5/1966- MT-97 116 363 Yd, Pontonnyy 20/3/1950 31/7/1950 31/8/1950 training hulk 1/1976
T-98, 5/1966- MT-98, 6/1977- -494 <PSKR-494> 117 363 Yd, Pontonnyy 1/3/1950 26/7/1950 21/9/1950 Board Guard 6/1977, stricken 6/1982
T-99, 5/1966- MT-99 118 363 Yd, Pontonnyy 27/3/1950 30/8/1950 17/10/1950 stricken 5/1972
T-102, 5/1966- MT-102 119 363 Yd, Pontonnyy 27/4/1950 17/9/1950 29/10/1950 training hulk 2/1975
T-103, 5/1966- MT-103 120 363 Yd, Pontonnyy 19/5/1950 2/10/1950 24/11/1950 stricken 10/1966
T-104, 5/1966- MT-104 121 363 Yd, Pontonnyy 16/6/1950 22/10/1950 7/12/1950 repair ship 7/1981
T-105, 5/1966- MT-105 122 363 Yd, Pontonnyy 13/7/1950 20/11/1950 28/12/1950 water preparation vessel 8/1983
T-106, 6/1951- <Zhemchug> 123 363 Yd, Pontonnyy 18/9/1950 13/12/1950 1/6/1951 Board Guard 6/1951, stricken 6/1973
<Brilliant> (ex-T-107) 124 363 Yd, Pontonnyy 9/10/1950 17/1/1951 6/6/1951 Board Guard, stricken 8/1972
T-109, 3/1963- - <Kontr-admiral Khoroshkhin> 125 363 Yd, Pontonnyy 30/10/1950 19/4/1951 30/6/1951 training hulk 7/1971
T-131, 5/1966- MT-131 126 363 Yd, Pontonnyy 15/11/1950 28/4/1951 30/6/1951 training hulk 7/1971
T-132, 10/1962- <Komsomolets Estonii> 127 363 Yd, Pontonnyy 30/11/1950 7/5/1951 3/7/1951 stricken 2/1973
T-133, 5/1966- MT-133 128 363 Yd, Pontonnyy 28/12/1950 28/5/1951 30/7/1951 stricken 7/1975
T-134, 5/1966- MT-134 129 363 Yd, Pontonnyy 29/1/1951 11/6/1951 30/8/1951 target 8/1978
T-135, 5/1966- MT-135 130 363 Yd, Pontonnyy 19/2/1951 24/6/1951 13/9/1951 test vessel 7/1971
T-136, 5/1966- MT-136 131 363 Yd, Pontonnyy 15/3/1951 13/7/1951 9/10/1951 stricken 12/1966
T-137, 5/1966- MT-137 132 363 Yd, Pontonnyy 2/4/1951 31/7/1951 10/10/1951 stricken 7/1970
T-138, 5/1966- MT-138 133 363 Yd, Pontonnyy 14/4/1951 31/8/1951 30/10/1951 stricken 8/1974
T-139, 5/1966- MT-139 134 363 Yd, Pontonnyy 26/4/1951 25/8/1951 29/11/1951 stricken 5/1972
T-140, 5/1966- MT-140 135 363 Yd, Pontonnyy 24/5/1951 3/10/1951 23/1/1952 repair ship 12/1981
T-141, 5/1966- MT-141 136 363 Yd, Pontonnyy 7/6/1951 22/10/1951 23/1/1952 stricken 6/1976
ϸ <Piotr Papkovich> 137 363 Yd, Pontonnyy 26/6/1951 11/11/1951 19/7/1952 rescue vessel 3/1957
T-49 100 532 Yd, Kerch' 3/3/1948 30/9/1949 25/3/1950 to Bulgaria 8/1951 (17)
T-50 101 532 Yd, Kerch' 30/6/1948 29/11/1949 30/4/1950 to Bulgaria 8/1951 (18)
T-51 102 532 Yd, Kerch' 11/12/1948 25/3/1950 31/7/1950 stricken 8/1965
T-52, 5/1966- MT-52 103 532 Yd, Kerch' 22/4/1949 30/4/1950 27/10/1950 test vessel 11/1975
T-53, 6/1950- <Ivan Rogov> 104 532 Yd, Kerch' 31/10/1949 30/6/1950 28/12/1950 rescue vessel 3/1957
<Ivan Maslov> 105 532 Yd, Kerch' 31/12/1949 20/11/1950 9/1/1951 stricken 4/1967
T-54, 5/1966- MT-54 106 532 Yd, Kerch' 27/3/1950 5/1/1951 29/4/1951 stricken 8/1973
T-55 107 532 Yd, Kerch' 17/7/1950 30/3/1951 31/7/1951 stricken 5/1966
T-56, 5/1966- MT-56 108 532 Yd, Kerch' 1/11/1950 3/6/1951 29/8/1951 training hulk 8/1976
T-57, 5/1966- MT-57 109 532 Yd, Kerch' 30/11/1950 21/7/1951 31/10/1951 training hulk 12/1975
T-59, 5/1966- MT-59 110 532 Yd, Kerch' 4/12/1950 10/8/1951 20/11/1951 stricken 11/1976
T-60, 5/1966- MT-60 111 532 Yd, Kerch' 31/3/1951 19/9/1951 31/12/1951 training hulk 8/1976
T-61, 5/1966- MT-61 112 532 Yd, Kerch' 22/2/1951 3/10/1951 31/12/1951 stricken 8/1973
T-62, 7/1953- <Magomed Gadzhiev> 113 532 Yd, Kerch' 27/4/1951 6/11/1951 31/12/1951 rescue vessel 2/1958
T-63, 7/1953- <Boris Safonov> 114 532 Yd, Kerch' 13/6/1951 30/12/1951 1/7/1952 test vessel 2/1960
T-64, 5/1966- MT-64 115 532 Yd, Kerch' 21/6/1951 14/2/1952 24/8/1952 stricken 7/1989
T-65, 5/1966- MT-65 116 532 Yd, Kerch' 20/8/1951 7/3/1952 31/10/1952 stricken 2/1970
<Vsevolod Vishnevskiy> 117 532 Yd, Kerch' 23/8/1951 18/4/1952 30/11/1952 degaussing vessel 12/1975
T-66, 5/1966- MT-66 118 532 Yd, Kerch' 17/12/1951 22/5/1952 30/12/1952 stricken 6/1978
T-67, 5/1966- MT-67 119 532 Yd, Kerch' 8/1/1952 1/7/1952 30/12/1952 test vessel 8/1972
T-68, 5/1966- MT-68 120 532 Yd, Kerch' 16/2/1952 31/7/1952 31/12/1952 stricken 2/1978
T-69, 5/1966- MT-69, 10/1972- <Komsomolets Kalmykii> 121 532 Yd, Kerch' 10/3/1952 30/9/1952 5/5/1953 stricken 3/1975
T-74, 5/1966- MT-74 122 532 Yd, Kerch' 21/4/1952 24/10/1952 27/6/1954 training hulk 3/1976
T-75 123 532 Yd, Kerch' 25/5/1952 15/12/1952 30/6/1953 rescue vessel 2/1958
T-76, 5/1966- MT-76 124 532 Yd, Kerch' 3/6/1952 29/1/1953 24/7/1953 stricken 8/1972
T-78 125 532 Yd, Kerch' 4/8/1952 1/3/1953 30/9/1953 rescue vessel 2/1958
Project 254K
<Izumrud> (ex-T-415) 138 363 Yd, Pontonnyy 19/7/1951 18/12/1951 12/9/1952 Board Guard, stricken 6/1974
T-416 139 363 Yd, Pontonnyy 19/7/1951 30/12/1951 --- // 27/6/1953 completed as test vessel Karp
T-424, 9/1952- <Topaz> 140 363 Yd, Pontonnyy 5/9/1951 24/1/1952 28/8/1952 Board Guard 9/1952, stricken 6/1975
T-417, 6/1957- -... <KVN-...> 141 363 Yd, Pontonnyy 24/10/1951 28/4/1952 14/10/1952 radar picket 6/1957, stricken 2/1973
<Almaz> (ex-T-418) 142 363 Yd, Pontonnyy 18/10/1951 5/6/1952 13/10/1952 Board Guard, stricken 9/1975
T-419, 5/1966- MT-419, 6/1977- -495 <PSKR-495> 143 363 Yd, Pontonnyy 9/11/1951 15/6/1952 2/11/1952 Board Guard 6/1977, stricken 6/1981
T-420, 5/1958- -6 <KVN-6> 144 363 Yd, Pontonnyy 14/12/1951 20/7/1952 30/11/1952 radar picket 5/1958, stricken 6/1981
T-421, 5/1966- MT-421, 6/1977- -496 <PSKR-496> 145 363 Yd, Pontonnyy 29/12/1951 9/8/1952 8/12/1952 Board Guard 6/1977, stricken 6/1988
T-422, 12/1957- -19 <KVN-19> 146 363 Yd, Pontonnyy 20/1/1952 22/8/1952 31/12/1952 radar picket 12/1957, stricken 6/1977
T-423, 5/1966- MT-423 147 363 Yd, Pontonnyy 15/2/1952 25/9/1952 30/6/1953 training hulk 8/1976
T-425, 5/1966- MT-425 148 363 Yd, Pontonnyy 10/3/1952 12/10/1952 29/6/1953 stricken 8/1973
T-426 149 363 Yd, Pontonnyy 22/11/1955 1/8/1956 --- // 1956 completed as test vessel Som
T-427, 5/1966- MT-427 150 363 Yd, Pontonnyy 23/4/1952 3/1/1953 30/6/1953 intelligence collection ship 9/1974
T-428, 5/1966- MT-428 151 363 Yd, Pontonnyy 24/5/1952 7/1/1953 23/7/1953 stricken 7/1986
T-429, 5/1966- MT-429 152 363 Yd, Pontonnyy 30/6/1952 1/3/1953 31/7/1953 training hulk 6/1979
T-430, 5/1966- MT-430 153 363 Yd, Pontonnyy 9/7/1952 7/3/1953 31/8/1953 stricken 4/1990
T-431, 12/1957- -20 <KVN-20> 154 363 Yd, Pontonnyy 26/7/1952 25/4/1953 30/9/1953 accommodation hulk 7/1979
<Yantar'> (ex-T-432) 155 363 Yd, Pontonnyy 20/8/1952 10/5/1953 26/10/1953 Board Guard, stricken 6/1976
<Agat> (ex-T-433) 156 363 Yd, Pontonnyy 18/9/1952 9/6/1953 26/10/1953 Board Guard, stricken 11/1975
T-480, 5/1966- MT-480 157 363 Yd, Pontonnyy 20/12/1952 8/6/1953 15/9/1953 intelligence collection ship 11/1977
T-481, 5/1966- MT-481 158 363 Yd, Pontonnyy 18/11/1952 14/7/1953 10/10/1953 stricken 2/1973
T-482, 9/1958- -1 <KVN-1> 159 363 Yd, Pontonnyy 9/12/1952 22/8/1953 29/11/1953 radar picket 9/1958, stricken 3/1974
T-483, 9/1958- -2 <KVN-2> 160 363 Yd, Pontonnyy 27/12/1952 30/9/1953 30/11/1953 radar picket 9/1958, stricken 4/1972
T-484 161 363 Yd, Pontonnyy 22/1/1953 15/10/1953 17/12/1953 to Albania 11/1960 (151)
T-485, 5/1966- MT-485 162 363 Yd, Pontonnyy 18/2/1953 30/10/1953 19/12/1953 stricken 4/1990
T-486, 5/1966- MT-486 163 363 Yd, Pontonnyy 23/3/1953 5/11/1953 23/12/1953 training hulk 8/1976
T-487, 5/1966- MT-487 164 363 Yd, Pontonnyy 6/4/1953 27/11/1953 21/6/1954 test vessel 8/1972
T-488, 5/1966- MT-488 165 363 Yd, Pontonnyy 12/5/1953 29/11/1953 28/6/1954 stricken 3/1978
T-489, 5/1966- MT-489 166 363 Yd, Pontonnyy 25/5/1953 1/12/1953 30/6/1954 stricken 3/1975
T-490, 5/1966- MT-490 167 363 Yd, Pontonnyy 17/6/1953 9/12/1953 14/7/1954 training hulk 6/1979
T-491, 5/1966- MT-491 168 363 Yd, Pontonnyy 4/8/1953 15/3/1954 21/7/1954 water preparation vessel 9/1977
T-492, 5/1966- MT-492 169 363 Yd, Pontonnyy 24/7/1953 20/3/1954 31/7/1954 target 7/1980
T-493, 5/1966- MT-493 170 363 Yd, Pontonnyy 20/8/1953 12/4/1954 18/8/1954 to Algeria 8/1967 (M221)
T-494, 5/1966- MT-494 171 363 Yd, Pontonnyy 14/9/1953 24/4/1954 31/8/1954 test vessel 8/1974
T-495 172 363 Yd, Pontonnyy 26/10/1953 22/6/1954 16/9/1954 to Albania 11/1960 (152)
T-496, 9/1958- -3 <KVN-3>, 8/1968- <Nikolay Markin> 173 363 Yd, Pontonnyy 2/12/1953 7/7/1954 30/9/1954 radar picket 9/1958, accommodation hulk 10/1990
T-497 174 363 Yd, Pontonnyy 25/12/1953 4/8/1954 30/9/1954 to Egypt 6/1956 (Sharkiya)
T-498 175 363 Yd, Pontonnyy 19/1/1954 14/8/1954 31/10/1954 to Egypt 6/1956 (Dakhliya)
T-499 176 363 Yd, Pontonnyy 4/3/1954 9/9/1954 18/11/1954 to Egypt 6/1956 (Sinay)
T-500 177 363 Yd, Pontonnyy 29/3/1954 22/9/1954 30/11/1954 to Egypt 6/1956 (Assiut)
T-502, 10/1962- <Komsomolets Belorussii> 178 363 Yd, Pontonnyy 3/2/1954 27/8/1954 19/11/1954 stricken 2/1982
T-503, 5/1966- MT-502 179 363 Yd, Pontonnyy 12/4/1954 7/10/1954 23/12/1954 test vessel 6/1979
T-504, 5/1966- MT-504 180 363 Yd, Pontonnyy 28/4/1954 5/11/1954 20/1/1955 stricken 2/1978
T-79 126 532 Yd, Kerch' 15/7/1952 29/4/1953 22/10/1953 test vessel 8/1965
T-80, 9/1958- -5 <KVN-5> 127 532 Yd, Kerch' 19/9/1952 1953 31/10/1953 radar picket 9/1958, stricken 7/1982
T-81, 5/1966- MT-81 128 532 Yd, Kerch' 28/10/1952 29/6/1953 29/10/1953 training hulk 7/1975
T-82, 6/1957- -25 <KVN-25> 129 532 Yd, Kerch' 20/11/1952 31/7/1953 30/11/1953 radar picket 6/1957, receiving ship 8/1972
T-84, 5/1966- MT-84, 6/1977- -493 <PSKR-493> 130 532 Yd, Kerch' 24/1/1953 1/9/1953 22/12/1953 Board Guard 6/1977, stricken 2/1985
T-85, 9/1957- <Sapfir> 131 532 Yd, Kerch' 26/1/1953 30/9/1953 28/12/1953 Board Guard 9/1957, wrecked 6/11/1979
T-86, 9/1957- <Rubin> 132 532 Yd, Kerch' 24/2/1953 29/10/1953 30/12/1953 Board Guard 9/1957, stricken 10/1974
T-88, 5/1966- MT-88 133 532 Yd, Kerch' 1/4/1953 30/11/1953 1954 test vessel 7/1971
T-89, 5/1966- MT-89 134 532 Yd, Kerch' 16/5/1953 31/12/1953 29/4/1954 to Iraq 6/1968 (Al Yarmouk)
T-801, 5/1966- MT-801, 6/1977- -497 <PSKR-497> 135 532 Yd, Kerch' 10/7/1953 26/1/1954 19/5/1954 Board Guard 6/1977, stricken 2/1985
T-802, 5/1966- MT-802, 6/1977- -498 <PSKR-498> 136 532 Yd, Kerch' 2/9/1953 16/3/1954 17/6/1954 Board Guard 6/1977, stricken 3/1987
T-803, 10/1956- -12 <RLK-12>, 12/1957- -12 <KVN-12> 137 532 Yd, Kerch' 3/10/1953 31/3/1954 30/6/1954 radar picket 10/1956, stricken 5/1980
T-804, 10/1956- -13 <RLK-13>, 12/1957- -13 <KVN-13> 138 532 Yd, Kerch' 23/10/1953 21/4/1954 10/7/1954 radar picket 10/1956, stricken 3/1975
T-805, 5/1966- MT-805, 8/1968- <Stepan Shaumian> 139 532 Yd, Kerch' 27/12/1953 12/5/1954 29/7/1954 stricken 6/1983
T-806, 5/1966- MT-806 140 532 Yd, Kerch' 11/1/1954 31/5/1954 24/8/1954 stricken 6/1991
T-807, 6/1955- -9 <RLK-9>, 12/1956- -9 <KVN-9> 141 532 Yd, Kerch' 23/3/1954 26/6/1954 8/8/1954 radar picket 6/1955, stricken 7/1992
T-808, 6/1955- -10 <RLK-10>, 12/1956- -10 <KVN-10> 142 532 Yd, Kerch' 1954 21/7/1954 28/9/1954 radar picket 6/1955, stricken 5/1980
T-809, 5/1966- MT-809 143 532 Yd, Kerch' 21/4/1954 19/8/1954 27/10/1954 to Egypt 12/1967 (Bahayra)
T-810, 5/1966- MT-810 13 532 Yd, Kerch' 17/5/1954 6/9/1954 31/10/1954 to Egypt 8/1967 (Garbiya)
T-811, 5/1966- MT-811 16 532 Yd, Kerch' 12/6/1954 25/9/1954 30/11/1954 test vessel 8/1982
T-812, 9/1958- -35 <KVN-35> 20 532 Yd, Kerch' 30/6/1954 15/10/1954 27/12/1954 radar picket 9/1958, stricken 6/1993
T-814, 11/1956- -14 <KVN-14> 25 532 Yd, Kerch' 29/7/1954 30/10/1954 30/12/1954 training hulk 7/1978
T-815 31 532 Yd, Kerch' 26/8/1954 10/12/1954 9/3/1955 to Syria 2/1959 (Yarmouk)
T-816, 1963- T-100 38 532 Yd, Kerch' 18/9/1954 5/1/1955 31/3/1955 to Indonesia 1/1963 (Pulau Roon)
T-820, 3/1959- -27 <KVN-27> 42 532 Yd, Kerch' 10/12/1954 28/4/1955 22/7/1955 radar picket 3/1959, training hulk 8/1980
T-821, 12/1957- -22 <KVN-22> 44 532 Yd, Kerch' 30/12/1954 28/5/1955 17/8/1955 radar picket 12/1957, training hulk 9/1977
T-817, 5/1966- MT-817, 8/1968- <Ivan Fioletov> 46 532 Yd, Kerch' 29/9/1954 12/2/1955 30/4/1955 stricken 1990
T-822, 5/1966- MT-822 47 532 Yd, Kerch' 19/1/1955 21/6/1955 18/9/1955 to Iraq 4/1967 (Al Qadisia)
T-823, 6/1962- T-101 51 532 Yd, Kerch' 28/2/1955 14/7/1955 30/9/1955 to Indonesia 1/1963 (Pulau Rorbas)
T-818, 5/1966- MT-818, 8/1968- <Meshadi Azizbekov> 55 532 Yd, Kerch' 4/11/1954 10/3/1955 31/5/1955 stricken 6/1987
T-824, 5/1962- T-102 56 532 Yd, Kerch' 18/3/1955 8/8/1955 30/10/1955 to Indonesia 1/1963 (Pulau Raja)
T-825 62 532 Yd, Kerch' 13/4/1955 30/8/1955 29/11/1955 to Syria 2/1959 (Hitin)
T-819, 5/1966- MT-819, 4/1976- <Komsomolets Kalmykii> 65 532 Yd, Kerch' 13/11/1954 1/4/1955 28/6/1955 stricken 3/1989
T-826, 6/1962- T-103 69 532 Yd, Kerch' 7/5/1955 24/9/1955 30/11/1955 to Indonesia 1/1963 (Pulau Rondo)
T-827, 5/1966- MT-827 77 532 Yd, Kerch' 31/5/1955 21/10/1955 29/12/1955 test vessel 8/1986
Project 254M
T-505, 5/1966- MT-505 912 363 Yd, Pontonnyy 22/5/1954 26/11/1954 22/6/1955 to Algeria 8/1967 (M222)
T-506, 5/1966- MT-506 913 363 Yd, Pontonnyy 23/6/1954 11/12/1954 25/6/1955 intelligence collection ship 9/1974
T-507, 10/1963- T-105 914 363 Yd, Pontonnyy 26/7/1954 31/12/1954 30/6/1955 to Indonesia 5/1964 (Pulau Rani)
T-508, 10/1963- T-104 915 363 Yd, Pontonnyy 14/8/1954 15/1/1955 2/8/1955 to Indonesia 2/1964 (Pulau Ratevo)
T-509, 5/1966- MT-509 711 363 Yd, Pontonnyy 8/9/1954 2/2/1955 6/8/1955 to Egypt 2/1970 (Minha)
T-510, 11/1956- -15 <KVN-15> 712 363 Yd, Pontonnyy 22/9/1954 7/5/1955 12/8/1955 radar picket 11/1956, target 7/1980
T-511, 11/1956- -16 <KVN-16> 713 363 Yd, Pontonnyy 30/9/1954 14/5/1955 30/8/1955 radar picket 11/1956, stricken 3/1978
T-512, 5/1966- MT-512 714 363 Yd, Pontonnyy 1/11/1954 28/5/1955 31/8/1955 stricken 3/1975
T-513, 11/1956- -17 <KVN-17> 715 363 Yd, Pontonnyy 22/11/1954 4/6/1955 17/10/1955 radar picket 11/1956, stricken 8/1987
T-514   363 Yd, Pontonnyy 1954 1955 1956 // --- completed as test vessel Skat
T-515   363 Yd, Pontonnyy 1954 1955 1956 // --- completed as test vessel Sterliad'
T-516   363 Yd, Pontonnyy 1954 1955 1956 // --- completed as test vessel Sudak
T-519, 5/1966- MT-519 511 363 Yd, Pontonnyy 13/12/1954 1/7/1955 17/10/1955 accommodation hulk 6/1979
T-520, 5/1966- MT-520 512 363 Yd, Pontonnyy 29/12/1954 25/7/1955 17/10/1955 stricken 8/1987
T-517, 11/1956- -18 <KVN-18> 513 363 Yd, Pontonnyy 29/1/1955 4/6/1955 17/10/1955 radar picket 11/1956, stricken 2/1973
T-518, 5/1966- MT-518 514 363 Yd, Pontonnyy 25/2/1955 26/8/1955 9/11/1955 training hulk 4/1988
T-457, 5/1966- MT-457 515 363 Yd, Pontonnyy 22/3/1955 10/9/1955 13/12/1955 stricken 5/1979
T-458, 5/1966- MT-458, 6/1977- -488 <PSKR-488> 811 363 Yd, Pontonnyy 13/4/1955 11/10/1955 1/12/1955 Board Guard 6/1977, stricken 12/1979
T-529, 10/1962- <Komsomolets Latvii> 813 363 Yd, Pontonnyy 30/4/1955 4/11/1955 10/1/1956 water preparation vessel 8/1983
T-528, 5/1966- MT-528 814 363 Yd, Pontonnyy 13/7/1955 26/11/1955 10/7/1956 intelligence collection ship 9/1974
T-530, 5/1966- MT-530 923 363 Yd, Pontonnyy 5/7/1955 26/12/1955 30/7/1956 training hulk 7/1981
T-831, 5/1966- MT-831 924 363 Yd, Pontonnyy 1955 1956 1956 stricken 6/1988
T-832, 5/1966- MT-832, 6/1977- -499 <PSKR-499> 925 363 Yd, Pontonnyy 30/11/1955 6/9/1956 2/11/1956 Board Guard 6/1977, stricken 12/1979
T-833, 10/1962- <Kaliningradskiy Komsomolets> 721 363 Yd, Pontonnyy 21/11/1955 11/9/1956 2/11/1956 training hulk 7/1980
T-834, 3/1963- - <Kontr-admiral Yurkovskiy> 722 363 Yd, Pontonnyy 2/3/1956 23/9/1956 8/12/1956 stricken 6/1985
T-835, 5/1966- MT-835 723 363 Yd, Pontonnyy 10/4/1956 7/10/1956 7/1/1957 target 8/1982
T-836, 5/1966- MT-836 724 363 Yd, Pontonnyy 29/5/1956 4/11/1956 7/1/1957 stricken 2/1988
T-837, 5/1966- MT-837 725 363 Yd, Pontonnyy 30/5/1956 12/11/1956 7/1/1957 stricken 7/1982
T-838, 5/1966- MT-838, 6/1977- -490 <PSKR-490> 521 363 Yd, Pontonnyy 27/6/1956 9/5/1957 11/7/1957 Board Guard 6/1977, stricken 9/1982
T-839, 5/1966- MT-839, 6/1977- -491 <PSKR-491> 522 363 Yd, Pontonnyy 23/8/1956 2/6/1957 7/8/1957 Board Guard 6/1977, stricken 9/1984
T-840, 5/1966- MT-840, 6/1977- -492 <PSKR-492> 523 363 Yd, Pontonnyy 1/10/1956 6/6/1957 7/8/1957 Board Guard 6/1977, stricken 12/1983
T-747, 5/1966- MT-747, 6/1977- -489 <PSKR-489> 524 363 Yd, Pontonnyy 11/10/1956 1/7/1957 31/8/1957 Board Guard 6/1977, stricken 12/1979
T-748, 5/1966- MT-748 525 363 Yd, Pontonnyy 19/11/1956 9/7/1957 25/9/1957 training hulk 7/1988
Project 254A
T-749, 5/1966- MT-749 821 363 Yd, Pontonnyy 4/12/1956 29/7/1957 20/11/1957 stricken 4/1990
T-750, 5/1966- MT-750 822 363 Yd, Pontonnyy 29/12/1956 19/8/1957 17/12/1957 stricken 5/1984
T-751, 5/1966- MT-751, 10/1968- <Sakhalinskiy Komsomolets> 823 363 Yd, Pontonnyy 27/2/1957 5/9/1957 17/12/1957 Board Guard 12/1977, stricken 1990
T-6, 4/1960- <Vladimir Polukhin> 824 363 Yd, Pontonnyy 25/3/1957 1/11/1957 22/7/1958 stricken 5/1984
T-7, 5/1966- MT-7 825 363 Yd, Pontonnyy 28/3/1957 19/11/1957 31/7/1958 stricken 4/1990
T-129, 5/1966- MT-129 826 363 Yd, Pontonnyy 4/5/1957 11/3/1958 1/9/1958 training hulk 6/1988
T-130, 5/1966- MT-130 827 363 Yd, Pontonnyy 25/5/1957 15/3/1958 13/11/1958 stricken 5/1980
Project 254MA
<Opal> (ex-T-90) 828 363 Yd, Pontonnyy 27/6/1957 1/4/1958 12/7/1958 Board Guard, stricken 1980
<Korall> 829 363 Yd, Pontonnyy 23/7/1957 26/6/1958 30/9/1958 Board Guard, stricken 12/1982
<Khrustal'> 830 363 Yd, Pontonnyy 17/8/1957 5/7/1958 30/9/1958 Board Guard, stricken 1981
Project 254V
-50 <KVN-50>   363 Yd, Pontonnyy     1955 stricken 1970s?
-... <KVN-...>   532 Yd, Kerch'     1955 stricken 1970s?



Displacement standard, t

pr. 254: 500

pr. 254K: 510

pr. 254M, 254MA: 540

pr. 254A: 555

Displacement full, t

pr. 254: 569

pr. 254K: 577

pr. 254M, 254MA: 600

pr. 254A: 615

Length, m

pr. 254, 254K: 58.0

pr. 254M, 254A, 254MA: 59.1

Breadth, m

pr. 254: 8.52

pr. 254K, 254M, 254A, 254MA: 8.50

Draught, m

pr. 254: 2.25

pr. 254K: 2.28

pr. 254M, 254MA: 2.33

pr. 254A: 2.37

No of shafts

2

Machinery

pr. 254: 2 9D diesels

pr. 254K, 254M, 254A, 254MA: 2 9D or 9DM diesels

Power, h. p.

2200

Max speed, kts

pr. 254, 254K: 14

pr. 254M, 254MA: 14.5

pr. 254A: 15

Fuel, t

diesel oil

Endurance, nm(kts)

pr. 254, 254K: 3200(10)

pr. 254M, 254MA: 3500(10)

pr. 254A: 3800(10)

Armament

pr. 254: 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-1 or MT-1P mechanical sweeping gear, TEM-52 magnetic sweeping gear, 2 BAT-2 acoustic sweeping gears

pr. 254K: 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-2 mechanical sweeping gear, TEM-52 magnetic sweeping gear, 2 BAT-2 acoustic sweeping gears

pr. 254M: 2 x 2 - 37/70 V-11/V-11M, 2 x 2 - 25/112 2M-3M, 2 x 2 - 14.5/89, 2 x 2 - 12.7/79, 2 DCT (10), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MKT-1 mechanical sweeping gear, TEM-52M magnetic sweeping gear, BGAT acoustic sweeping gear

pr. 254A: 2 x 1 - 45/89 SM-21ZIF, 2 x 2 - 14.5/89, 2 DCT (10), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), BKT mechanical sweeping gear, TEM-52M magnetic sweeping gear, BGAT acoustic sweeping gear

pr. 254MA: 2 x 2 - 37/70 V-11/V-11M, 2 x 2 - 25/112 2M-3M, 2 x 2 - 14.5/89, 2 x 2 - 12.7/79, 2 DCT (10)

Sensors

pr. 254: Rif or Giuys-1M, Rym-K or Neptun radars, Tamir-10 sonar

pr. 254K: Lin', Rym-K radars, Tamir-10 sonar

pr. 254M, 254A, 254MA: Lin', Rym-K radars, Tamir-11 sonar

Complement

pr. 254: 65

pr. 254K: 68

pr. 254M, 254MA: 77

pr. 254A: 75

Ship project history: Project 254 was a coastal (later ocean) minesweeper assigned to TsKB-363 in Leningrad (it later merged with TsKB-50 to become the Western Planning and Design Office). This organization had already developed some mine countermeasures ships. Work began in 1946 and the design was approved the same year; it was specially adapted for mass production.

    The design was specially degaussed (to limit signature to within 20 milliersteds at 6m depth), but no attempt was made to limit acoustic or pressure signatures.

    Project 254A was modified for atomic protection. The hull was additionally reinforced and the internal space partly pressurised to keep fallout out. Battle stations had closed-cycle ventilation, and a wash-down system was fitted.

Modernizations: 6/1951, Zhemchug, Brilliant, Izumrud; 9/1952, Topaz, Almaz; 10/1953, Yantar', Agat, Sapfir, Rubin; 6/1977, PSKR-488-499; 12/1977, Sakhalinskiy Komsomolets: as Board Guard ships: mine countermeasures equipment was removed

1956, RLK-9, 10, 14; 1957, RLK-12, 13 - as radar pickets under Project 256: armament consisted of 2 x 2 - 37/70 V-11M, 4 x 2 -12.7/79, sensors included 2 P-10, Lin' radars; 14.5kts, 1800(14)nm, compl. 87

1957, KVN-15-17, 25; 1958, KVN-5, 6, 19, 20, 22, 24; 1959, KVN-1-3, 27, 35 - as radar pickets under Project 258: 500/594t, 58.0x8.50x2.20m, 14.5kts, 1800(14)nm, compl. 87; 2 x 2 - 37/7- V-11M, 1 x 2 - 25/112 2M-3M, 2 DCT, MR-200 Kaktus or MR-500 Kliver, Lin' radars

1958, KVN-18 - as radar picket under Project 258M: 500/594t, 58.0x8.50x2.20m, 14.5kts, 1800(14)nm, compl. 87; 2 x 2 - 37/7- V-11M, 1 x 2 - 25/112 2M-3M, 2 DCT, MR-500 Kliver, Lin' radars

1960, T-88: was rebuilt with diesel-electric machinery

1960s, T-430: + 2 x 2 - 12.7/79

12/1965, T-827; 4/1966, T-135: + 2 PK-16 decoy launchers

1970s, radar pickets of Projects 256 and 258 mainly: - Lin' radar; + Don radar, Bizan'-4 ECM suite

1974, Khrustal: - Lin'-M radar; + Don radar

1985, KVN-3: - MR-200 Kaktus radar; + MR-302 Rubka radar

Naval service: Board Guard ship Sapfir ran aground and wrecked 6/11/1979 on entrance to Nevelsk (Sakhalin).

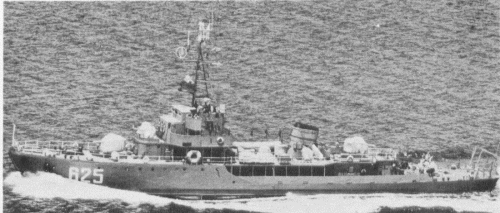

Project 254K 1978

Ivan Gogin, 2015
