IVAN GREN large landing ship (project 11711) (2018-)





Ivan Gren 2016

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Иван Грен [Ivan Gren] 135 301 Yantar', Kaliningrad 24.12.2004 18.5.2012 20.6.2018 in service (2019)
Пётр Моргунов [Piotr Morgunov]   302 Yantar', Kaliningrad 11.6.2015 25.5.2018 2019 building (2019)
Владимир Андреев [Vladimir Andreev]   303 Yantar', Kaliningrad 23.4.2019 2021 2023 building (2019)
Василий Трушин [Vasiliy Trushin]   304 Yantar', Kaliningrad 23.4.2019 2022 2024 building (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Иван Грен [Ivan Gren] 135 301 Yantar', Kaliningrad 24.12.2004 18.5.2012 20.6.2018 in service (2019) Пётр Моргунов [Piotr Morgunov]   302 Yantar', Kaliningrad 11.6.2015 25.5.2018 2019building (2019) Владимир Андреев [Vladimir Andreev]   303 Yantar', Kaliningrad 23.4.2019 20212023building (2019) Василий Трушин [Vasiliy Trushin]   304 Yantar', Kaliningrad 23.4.2019 20222024building (2019)

Technical data


Displacement standard, t

5080

Displacement normal, t

6000

Length, m

120.0 pp 128.0 oa

Breadth, m

16.5

Draught, m

6.10

No of shafts

2

Machinery

2 DRRA-3700 diesels

Power, h. p.

10400

Max speed, kts

18

Fuel, t

diesel oil

Endurance, nm(kts)

3500(16)

Armament

301, 302: 1 x 4 Igla SAM (8 9M39), 1 x 12 - 30/54 AK-630M-2 Duet, 2 x 6 - 30/54 AK-630M, 1 helicopter (Ka-29)

303, 304: 1 x 4 Igla SAM (8 9M39), 1 x 12 - 30/54 AK-630M-2 Duet, 2 x 6 - 30/54 AK-630M, 4 helicopters (Ka-29, Ka-52P)

Military load

13 main battle tanks or 60 vehicles, 380 troops or 1500t cargo

Electronic equipment

MR-352 Pozitiv, 5P-10 Laska, MR-123-02, 3x nav. radars, 4x KT-308 decoy launchers (Prosvet-M system)

Complement

100



Standard scale images


<i>Ivan Gren </i>2018
Ivan Gren 2018

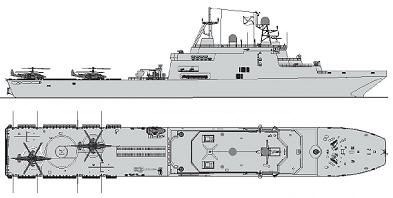

<i>Vladimir Andreev</i>
Vladimir Andreev


Graphics

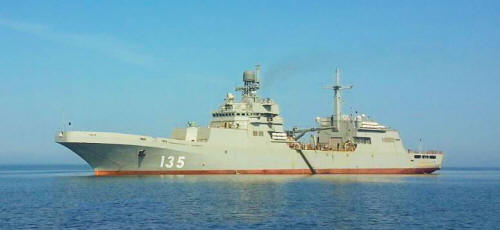

<i>Ivan Gren</i> 2016
Ivan Gren 2016


Project history

Replacement for the old Project 1171 ships. Apparels bow and aside. Second pair will have much larger helicopter deck and hangar.

Modernizations

None.

Naval service

No significant events.
