VASILIY BYKOV patrol ships (project 22160) (2018-)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Василий Быков [Vasiliy Bykov] 368 161 SSZ im. Gorkogo, Zelenodolsk 26.2.2014 28.8.2017 20.12.2018 in service (2019)
Дмитрий Рогачёв [Dmitriy Rogachiov]   162 SSZ im. Gorkogo, Zelenodolsk 25.7.2014 5/2018 2019 building (2019)
Павел Державин [Pavel Derzhavin]   163 SSZ im. Gorkogo, Zelenodolsk // Zaliv, Kerch' 18.2.2016 21.2.2019 2020 building (2019)
Сергей Котов [Sergey Kotov]   164 SSZ im. Gorkogo, Zelenodolsk // Zaliv, Kerch' 8.5.2016 2019 2020 building (2019)
Виктор Великий [Viktor Velikiy]   165 SSZ im. Gorkogo, Zelenodolsk 25.11.2016 2020 2021 building (2019)
Николай Сипягин [Nikolay Sipiagin]   166 SSZ im. Gorkogo, Zelenodolsk 13.1.2018 2021 2022 building (2019)


Technical data


Displacement standard, t1300
Displacement full, t

1600

Length, m

94.0

Breadth, m

14.0

Draught, m

4.40

No of shafts

2

Machinery

2 16D49 diesels

Power, h. p.

12000

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts)

6000(12)

Armament

2 x 4 Kalibr-NK CruM/SSM (8 3M14/3M54) (fitted for), 1 x 8 Gibka (Igla-S) SAM (8 Igla-S), 1 x 1 - 76/59 A-176MA, 2 x 1 - 14.5/89, 2 x 10 - 55 DP-65 grenade launchers, 2 x 2 - 45 DP-64 grenade launchers, 1 helicopter (Ka-27PS or Ka-29 or Ka-52K), 2 - 4 UAVs

Electronic equipment

5P-26 Pozitiv-MK, Pal-N radars, Ariadna, Pallada sonars, TK-25 ECM suite, 2x PK-10 Smelyy decoy RL

Complement

80

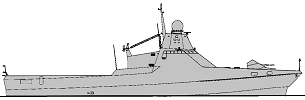

Standard scale images


<i>Vasiliy Bykov</i>
Vasiliy Bykov


Project history

Patrol ships with modular armament, for coastal service. Designed to perform the border patrol for the protection of the territorial waters and EEZ in deep and shallow waters, anti-smuggling and -piracy duties, search and rescue service, environmental monitoring, escorting, as well as protection of naval bases and sea areas in wartime. SSMs and SAMs are mounted in replaceable modules. Order of 6 more ships is planned for completion in 2020s. Ship carries one project 22800 assault boat launched via stern ramp.

Modernizations

None.

Naval service

No significant events.
