STEREGUSHCHIY corvettes (projects 20380, 20385) (2007-)





Steregushchiy 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Стерегущий [Steregushchiy] 550 1001 Severnaya verf', St. Petersburg 21.12.2001 16.5.2006 14.11.2007 in service (2019) Project 20380
Сообразительный [Soobrazitelnyy] 531 1002 Severnaya verf', St. Petersburg 20.5.2003 31.3.2010 14.10.2011 in service (2019) Project 20380
Бойкий [Boykiy] 532 1003 Severnaya verf', St. Petersburg 27.7.2005 15.4.2011 16.5.2013 in service (2019) Project 20380
Стойкий [Stoykiy] 545 1004 Severnaya verf', St. Petersburg 10.11.2006 30.5.2012 18.7.2014 in service (2019) Project 20380
Ретивый [Retivyy]   1007 Severnaya verf', St. Petersburg 20.2.2015 2019 2020 building (2019) Project 20380
Строгий [Strogiy]   1008 Severnaya verf', St. Petersburg 20.2.2015 2020 2021 building (2019) Project 20380
Совершенный [Sovershennyy] 333 2101 Amurskiy SSZ, Komsomolsk-on-Amur 30.6.2006 22.5.2015 20.7.2017 in service (2019) Project 20380
Громкий [Gromkiy] 335 2102 Amurskiy SSZ, Komsomolsk-on-Amur 20.4.2012 28.7.2017 25.12.2018 in service (2019) Project 20380
Герой Российской Федерации Алдар Цыденжапов [Geroy Rossiyskoy Federatsii Aldar Tsydenzhapov]   2103 Amurskiy SSZ, Komsomolsk-on-Amur 22.7.2015 2019 2020 building (2019) Project 20380
Резкий [Rezkiy]   2104 Amurskiy SSZ, Komsomolsk-on-Amur 1.7.2016 2020 2021 building (2019) Project 20380
Гремящий [Gremiashchiy]   1005 Severnaya verf', St. Petersburg 1.2.2012 30.6.2017 2019 building (2019) Project 20385
Проворный [Provornyy]   1006 Severnaya verf', St. Petersburg 25.7.2013 2019 2020 building (2019) Project 20385
    2105 Amurskiy SSZ, Komsomolsk-on-Amur 2019 2020 2021 ordered (2019) Project 20385
    2106 Amurskiy SSZ, Komsomolsk-on-Amur 2019 2020 2021 ordered (2019) Project 20385


Technical data


Displacement standard, t

1900

Displacement full, t

pr. 20380: 2200

pr. 20385: 2300

Length, m

pr. 20380: 111.6

pr. 20385: 115.1

Breadth, m

14.0

Draught, m

3.70 hull 5.00 max

No of shafts

2

Machinery

4 16D49 diesels

Power, h. p.

23320

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts)

4000(14)

Armament

pr. 20380, 1001: 2 x 4 Uran SSM (8 3M24), 1 x (8 Kortik-M SAM + 2 x 6 - 30/54) Kortik-M CADS (64 9M311), 1 x 8 Igla SAM (32 9M39), 1 x 1 - 100/59 A-190-01, 2 x 6 - 30/54 AK-630M-06, 2 x 1 - 14.5/89, 2 x 4 - 330 Paket-NK TT, 2 x 2 - 45 DP-64 grenade launchers, 1 helicopter (Ka-27)

pr. 20380, others: 2 x 4 Uran SSM (8 3M24), 3 x 4 Redut SAM (VLS, 12 9M96 or 48 9M100), 1 x 8 Igla SAM (32 9M39), 1 x 1 - 100/59 A-190-01, 2 x 6 - 30/54 AK-630M-06, 2 x 1 - 14.5/89, 2 x 4 - 330 Paket-NK TT, 2 x 2 - 45 DP-64 grenade launchers, 1 helicopter (Ka-27)

pr. 20385: 1 x 8 Kalibr-NK SSM/CruM (VLS, 8 3M14/3M54), 4 x 4 Redut SAM (VLS, 16 9M96 or 64 9M100), 1 x 1 - 100/59 A-190-01, 2 x 6 - 30/54 AK-630M-06, 2 x 1 - 14.5/89, 2 x 4 - 330 Paket-NK TT, 2 x 2 - 45 DP-64 grenade launchers, 1 helicopter (Ka-27)

Electronic equipment

pr. 20380: 5P-20K-A Monument-A, 5P-27M Furke-2, 2x Sandal-V, MR-231, MR-231-3, Pal-N, 5P-10-02 Puma-02, MR-123-02 radars, Sfera-02, 2x MTK-201M E/O detectors, Zaria-2, Minotavr-ISPN-M, MG-757 Anapa-M sonars, TK-25-2 ECM suite, 4x PK-10 Smelyy decoy launchers, Sigma-20380 CCS

pr. 20385: 5P-20K-A Monument-A, 5P-27M Furke-2, 2x Sandal-V, MR-231, MR-231-3, Pal-N, MR-123-02 radars, Sfera-02, 2x MTK-201M E/O detectors, Zaria-2, Minotavr-ISPN-M, MG-757 Anapa-M sonars, TK-25-2 ECM suite, 8x KT-216 decoy launchers (Prosvet-M system), Sigma-20380 CCS

Complement

99



Standard scale images


<i>Steregushchiy </i>2015
Steregushchiy 2015
<i>Gremiashchiy</i>
Gremiashchiy
<i>Soobrazitelnyy </i>2015
Soobrazitelnyy 2015

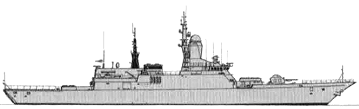

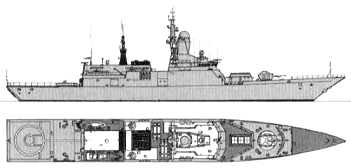

Graphics


<i>Soobrazitelnyy </i>2011
Soobrazitelnyy 2011
<i>Steregushchiy</i> 2007
Steregushchiy 2007


Project history

Design was approved by the Navy in 2001. Steel hull with composite superstructure, with form shaped to reduce radar interference. Helicopter hangar has weapon reload and fuelling capability. Some sources signed Nos 1002-1004, 1007, 1008 and 2101-2104 as project 20381 but this designation is wrong. Ships of the project 20385 will can carry also Yakhont hypersonic SSMs.

Modernizations

None.

Naval service

Soobrazitelnyy was damaged by collision 2.9.2012 and was under repair to May 2013.
