UKRAYNA torpedo cruisers (1905 - 1907)

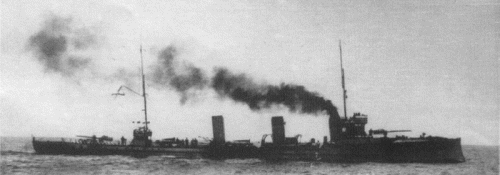

Zabaykalets

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Украйна [Ukrayna], 6.1920- Карл Маркс [Karl Marx], 8.1920- Украйна [Ukrayna], 12.1922- Маркин [Markin], 3.1923- Украйна [Ukrayna], 2.1924- Бакинский Рабочий [Bakinskiy Rabochiy]     Lange & Sohn, Riga 1/1904 4.10.1904 4.1905 gunboat 8.1926, TS 7.1949, sunk as target 7.1961
Войсковой [Voyskovoy], 6.1920- Фридрих Энгельс [Fridrikh Engels], 8.1920- Войсковой [Voyskovoy], 3.1923- Маркин [Markin]     Lange & Sohn, Riga 1904 26.11.1904 6.1905 gunboat 8.1926, TS 7.1949, stricken 6.1958
Трухменец [Trukhmenets], 10.1908- Туркменец-Ставропольский [Turkmenets-Stavropolskiy], 6.1920- Мирза Кучук [Mirza Kuchuk], 7.1920- Туркменец-Ставропольский [Turkmenets-Stavropolskiy], 12.1922- Альтфатер [Altfater], 5.1945- Советский Дагестан [Sovetskiy Dagestan], 7.1949- 3-й ДОСААФ (3-y DOSAAF)     Lange & Sohn, Riga 9.1904 18.2.1905 6.1905 gunboat 8.1926, TS 7.1949, stricken 7.1962
Казанец [Kazanets]     Lange & Sohn, Riga 1904 11.5.1905 5.1906 sunk 28.10.1916
Стерегущий [Steregushchiy]     Lange & Sohn, Riga 8.1904 4.7.1905 6/1906 stricken 11.1925
Страшный [Strashnyy]     Lange & Sohn, Riga 1904 5.1.1906 7.1906 stricken 11.1925
Донской Казак [Donskoy Kazak]     Lange & Sohn, Riga 1905 10.2.1906 Summer 1906 stricken 11.1925
Забайкалец [Zabaykalets]     Lange & Sohn, Riga 1905 27.4.1906 Spring 1907 stricken 11.1925


Technical data


Displacement normal, t

730

Displacement full, t880
Length, m

73.2

Breadth, m

7.24

Draught, m

3.35

No of shafts

2

Machinery

2 VTE, 4 Normand boilers

Power, h. p.

7000

Max speed, kts

26

Fuel, t

coal 134

Endurance, nm(kts)1100(12)
Armament

Ukrayna, Voyskovoy, Trukhmenets: 2 x 1 - 75/48 Canet, 4 x 1 - 57/50 Hotchkiss, 2 x 1 - 7.6/94, 1 x 2 - 381 TT, 1 x 1 - 381 TT, 25 mines

Kazanets, Steregushchiy, Strashnyy: 2 x 1 - 75/48 Canet, 4 x 1 - 57/50 Hotchkiss, 4 x 1 - 7.6/94, 2 x 1 - 450 TT, 16 mines

Donskoy Kazak, Zabaykalets: 2 x 1 - 75/48 Canet, 4 x 1- 57/50 Hotchkiss, 2 x 1 - 7.6/94, 2 x 1 - 450 TT, 16 mines

Complement

88



Standard scale images


<i>Altfater</i> 1943
Altfater 1943
<i>Ukrayna</i> 1914
Ukrayna 1914


Graphics

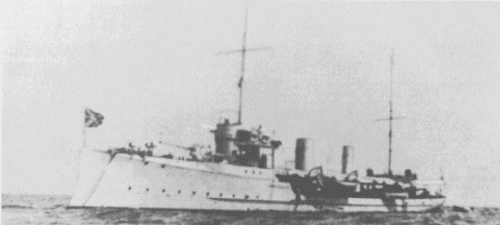

<i> Markin</i>
Markin
<i> Zabaykalets</i>
Zabaykalets

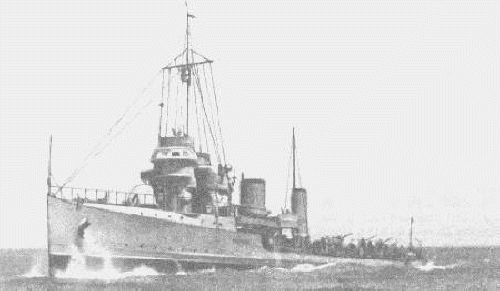

<i>Voyskovoy</i> 1913
Voyskovoy 1913


Project history

Built under the project of Vulcan. They had bad seagoing capacities and low endurance. Rated as torpedo cruisers, since September, 1907 as destroyers.

Modernizations

1910, Ukrayna, Voyskovoy, Turkmenets-Stavropolskiy: - 2 x 1 - 75/48, 4 x 1 - 57/50, 1 x 2 - 381 TT, 1 x 1 - 381 TT; + 2 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss, 2 x 1 - 7.6/94, 2 x 1 - 450 TT

1910, Kazanets, Steregushchiy: - 2 x 1 - 75/48, 4 x 1 - 57/50; + 2 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss

1910, Strashnyy: - 2 x 1 - 75/48, 4 x 1 - 57/50; + 2 x 1 - 102/60

1910, Donskoy Kazak, Zabaykalets: - 2 x 1 - 75/48, 4 x 1 - 57/50; + 2 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss, 2 x 1 - 7.6/94

1916, Ukrayna, Voyskovoy, Turkmenets-Stavropolskiy, Steregushchiy, Donskoy Kazak: - 2 x 1 - 7.6/94; + 1 x 1 - 102/60, 1 x 1 - 40/39 Vickers

1916, Strashnyy: - 2 x 1 - 7.6/94; + 1 x 1 - 102/60, 1 x 1 - 37/20 Hotchkiss

1916, Zabaykalets: - 2 x 1 - 7.6/94; + 1 x 1 - 102/60

1927, Markin, Altfater; 1932, Bakinskiy Rabochiy: - 1 x 1 - 40/39, 1 x 1 - 37/20, 2 x 1 - 450 TT; + 1 x 1 - 76/28 8K, 1 x 1 - 7.6/94

1942, Bakinskiy Rabochiy, Markin, Altfater: - 1 x 1 - 76/28, 1 x 1 - 7.6/94; + 2 x 1 - 45/43 21K, 2 x 1 - 37/63 70K, 4 x 1 - 12.7/79

1/1946, Bakinskiy Rabochiy, Markin, Altfater: 3 x 1 - 102/60, 2 x 1 - 45/46 21K, 2 x 1 - 37/73 70K, 4 x 1 - 12.7/79, 2 x 1 - 7.6/94, 25 mines

Naval service

Kazanets was torpedoed by German submarine UC27 and sank at island Vormsi (Gulf of Finland) 28.10.1916. Steregushchiy, Strashny, Donskoy Kazak and Zabaykalets in 1918 because of bad technical condition were laid up.
