UDALOY large ASW ships (projects 1155, 11551) (1980 - 1999)





Admiral Vinogradov 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Удалой [Udaloy]   111 Yantar, Kaliningrad 23.7.1977 5.2.1980 31.12.1980 stricken 8.1997 Project 1155
Адмирал Захаров [Admiral Zakharov]   112 Yantar, Kaliningrad 16.10.1981 4.11.1982 30.12.1983 fire 17.2.1991 Project 1155
Адмирал Спиридонов [Admiral Spiridonov]   113 Yantar, Kaliningrad 11.4.1982 28.4.1984 30.12.1984 stricken 7.2001 Project 1155
Маршал Шапошников [Marshal Shaposhnikov] 543 114 Yantar, Kaliningrad 25.5.1983 27.12.1984 30.12.1985 in service (2019) Project 1155
Симферополь [Simferopol], 12.1995- Североморск [Severomorsk] 619 115 Yantar, Kaliningrad 12.6.1984 24.12.1985 30.12.1987 in service (2019) Project 1155
Адмирал Виноградов [Admiral Vinogradov] 572 116 Yantar, Kaliningrad 5.2.1986 4.6.1987 30.12.1988 in service (2019) Project 1155
Адмирал Харламов [Admiral Kharlamov] 678 117 Yantar, Kaliningrad 7.8.1986 29.6.1988 30.12.1989 in reserve (2019) Project 1155
Адмирал Пантелеев [Admiral Panteleev] 548 118 Yantar, Kaliningrad 28.1.1988 7.2.1990 19.12.1991 in service (2019) Project 1155
Вице-адмирал Кулаков [Vitse-admiral Kulakov] 626 731 Zhdanov Yd, Leningrad 4.11.1977 16.5.1980 29.12.1981 in service (2019) Project 1155
Маршал Василевский [Marshal Vasilevskiy]   732 Zhdanov Yd, Leningrad 22.4.1979 29.12.1981 8.12.1983 stricken 2.2007 Project 1155
Адмирал Трибуц [Admiral Tributs] 564 733 Zhdanov Yd, Leningrad 19.4.1980 26.3.1983 30.12.1985 in service (2019) Project 1155
Адмирал Левченко [Admiral Levchenko] (ex-Хабаровск [Khabarovsk]) 605 734 Zhdanov Yd, Leningrad 27.1.1982 21.2.1985 30.9.1988 in service (2019) Project 1155
Адмирал Чабаненко [Admiral Chabanenko] 650 121 Yantar, Kaliningrad 28.2.1989 16.6.1994 28.1.1999 in service (2019) Project 11551
Адмирал Басистый [Admiral Basistyy]   122 Yantar, Kaliningrad 1991 --- --- cancelled 1994 Project 11551
Адмирал Кучеров [Admiral Kucherov]   735 Northern Yd, St. Petersburg 1991 --- --- cancelled 1993 Project 11551


Technical data


Data variantpr. 1155 pr. 11551
Displacement standard, t

6840

7640

Displacement full, t

7570

8320

Length, m

163.0

162.9

Breadth, m

19.0

19.0

Draught, m

5.20 hull 7.20 max

5.10 hull 7.80 max

No of shafts

2

2

Machinery

2 M-9 gas turbine units (each consisted of one M-62 cruising and M-8KF boost turbines)

2 M-9 gas turbine units (each consisted of one cruising and M-8KF boost turbines)

Power, h. p.

17000 + 45000 = 62000

27000 + 45000 = 72000

Max speed, kts

29.5

30.1

Fuel, t

gas turbine oil

gas turbine oil

Endurance, nm(kts)

4000(18)

3327(18)

Armament

111, 731: 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27)

112: 8 x 1 Kinzhal SAM VLS (64 9M330), 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27)

113, 114, 732, 733: 4 x 1 Kinzhal SAM VLS (32 9M330), 2 x 4 URPK-3 Metel' ASuM (8 85R), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27)

115-118, 734: 2 x 4 URK-5 Rastrub-B SSM/ASuM (8 85RU), 8 x 1 Kinzhal SAM VLS (64 9M330), 2 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 2 x 4 - 533 TT (8), 2 x 12 RBU-6000 Smerch-2 ASWRL, 26 mines, 2 helicopters (Ka-27)

2 x 4 Moskit-M SSM (8 P-105 (3M82)), 8 x 1 Kinzhal SAM VLS (64 9M330), 2 x (8 Kortik SAM + 2 x 6 - 30/54) Kortik CIWS (64 9M311), 2 x 4 URPK-6 Vodopad-NK ASuM (18 83R, 84R, torpedoes), 1 x 2 - 130/70 AK-130, 2 x 10 RBU-12000 RKPTZ-1 Udav-1 ASWRL, 26 mines, 2 helicopters (Ka-27)

Electronic equipment

111, 731: MR-320 Topaz, MR-320V Topaz-V, MR-145 Lev-218-100, 2x MR-123 Vympel-A, Volga radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M decoy RLs, MVU-211 Lesorub-1155 CCS

112: MR-760 Fregat-MA, 2x 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M decoy RLs, MVU-211 Lesorub-1155 CCS

113, 114, 732, 733: MR-760 Fregat-MA, 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M decoy RLs, MVU-211 Lesorub-1155 CCS

115-117, 734: MR-760 Fregat-MA, Podkat, Musson-U-1155, 2x 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M, 8x PK-10 Smely decoy RLs, MVU-211 Lesorub-1155 CCS

118: MR-760 Fregat-MA, Podkat, Musson-U-1155, 2x 3R-95, MR-145 Lev-218-100, 2x MR-123 Vympel-A, 2x MR-212/201-1 Vaygach-U radars, MGK-355 Polinom, 2x MG-7 Braslet sonars, 4x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M, 8x PK-10 Smely decoy RLs, MVU-211 Lesorub-1155 CCS

MR-750 Fregat-MA, MR-350 Podkat, 2x 3R-95, MR-145 Lev-218, 2x MR-212/201-1 Vaygach-U radars, Zvezda-M2 sonar suite, 2x MP-401S Start, 2x MP-407 Start-2 ECM suites, 2x PK-2M, 10x PK-10 Smely decoy RLs, MVU-211 Lesorub-11551 CCS

Complement

293

405



Standard scale images

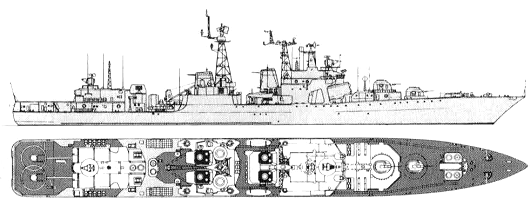

<i>Marshal Vasilevskiy </i>2000
Marshal Vasilevskiy 2000

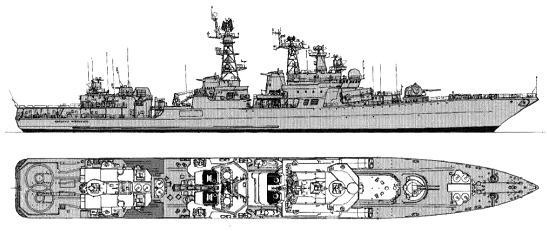

<i>Admiral Chabanenko </i>2000
Admiral Chabanenko 2000


Graphics

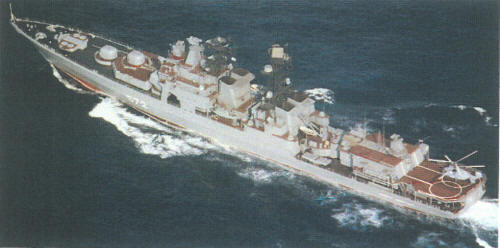

<i>Admiral Vinogradov </i>2001
Admiral Vinogradov 2001
<i>Admiral Chabanenko </i>2002
Admiral Chabanenko 2002


Project history

These ships are in effect Soviet equivalents of the US Spruance. They are designed to act as ASW flotilla leaders, presumably working with frigates. In effect they are Project 1134B successors with paired helicopters aft and without area defence missiles (their Kinzhal SAMs are, in effect, Osa successors).

The new Kinzhal apparently encountered problems. As of 1992, the first two ships still lacked both missile launchers and directors. The third had launchers but no directors. The fourth. Admiral Zakharov, was the first to have the full system, including two directors (one of which was later removed for titling to another ship). The next two ships had only single directors; the first to retain both directors was Simferopol.

Later ships were ordered to a modified 1155.1 design, with a single 130mm mount forward, an RBU-12000, two Kortik CIWS, and two quadruple Moskit SSM mounts.

Planned modernization of Marshal Shaposhnikov will include installing of 2 quadruple canisters for Uran SSM and replacing MR-123 Vympel-2 radars by MR-123-02/3 Bagira, MR-760 Fregat-MA by MR-710 Fregat-M, older ECM equipment by TK-25-2 ECM suite and installing of new 5P-30N2 Fregat-N2 radar.

Modernizations

1991, Admiral Tributs: - 1 MR-2122/201-1 Vaygach-U radar; + 4 x 1 Kinzhal SAM VLS (32 9M330), MR-350A Podkat, 3R-95, MR-212/201 Nayada-5 radars, 2x MP-401 Start ECM suites

1992, Admiral Vinogradov, Admiral Tributs: + 4 x 2 - 12.7/79 (temporarily, later removed)

2000, Severomorsk: + 2x MP-401 Start ECM suites

2009, Admiral Tributs: -2x MR-123 Vympel-A radars; + 2x MR-123-02/3 Bagira radars

2010, Vitse-admiral Kulakov: - MR-320 Topaz, MR-320V Topaz-V, Volga radars; + 4 x 1 Kinzhal SAM VLS (32 9M330), 1 x 6 Igla SAM (24 Igla), 5P-30N Fregat-N, 5P-30N2 Fregat-N2, 3R-95, Pal-N radars, Spektr-F laser detector

2013, Admiral Vinogradov, Severomorsk: - 1x MR-123 Vympel-A radar; + 1x MR-123-02/3 Bagira radar

2013, Admiral Levchenko: + MR-231-1 radar

2014, Admiral Tributs: - MR-145 Lev-218-100, 1x MR-212/201 Vaygach-U, MR-212/201 Nayada-5 radars, Lesorub-1155 CCS; + MR-123-02/3M Bagira-M, 2x MR-231 radars, Sigma CCS

2015, Admiral Levchenko: - MR-231-1 radar

2015, Admiral Vinogradov, Admiral Levchenko, Marshal Shaposhnikov, Severomorsk: + MR-231-3 radar

2016, Admiral Chabanenko: + 5P-30N Fregat-N radar

2018, Marshal Shaposhnikov: - MR-760 Fregat-MA, 2x MR-123 Vympel-A radars; + 2 x 4 Uran SSM (8 3M24), MR-710 Fregat-M, 5P-30N2 FregatN2, 2x MR-123-02/3 Bagira radars, TK-25-2 ECM suite

Naval service

Admiral Zakharov suffered several damage during a fire 17.2.1991, she was stricken in July 1994 and scrapped.
