SUKHUM torpedo boat (1883)





Sukhum

Ships


Names Builders Completed Losses Transfers Discarding

Сухум [Sukhum], 4.1895- №257

Thornycroft, Southampton, UK: Sukhum

1883: Sukhum

none

none

1907: №257



Technical data


Displacement normal, t

64

Displacement full, t
Length, m

34.4

Breadth, m

3.81

Draught, m

1.98 max

No of shafts

1

Machinery

1 VC, 1 locomotive boiler

Power, h. p.

704

Max speed, kts

17.9

Fuel, t

coal 11

Endurance, nm(kts)1060(10.5)
Armament

2 x 5 - 37/17 Hotchkiss, 2 - 381 TT (bow)

Complement16

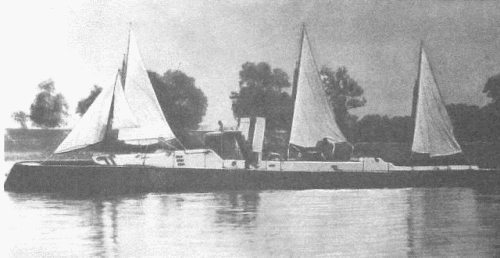

Standard scale images


<i>Sukhum </i>1883
Sukhum 1883


Graphics


<i>Sukhum</i>
Sukhum


Project history

Ram-bowed with turtle deck forward, two funnels abreast and three masts on which fore and aft sails could be set. There was 6mm steel on the sides and deck near the machinery. The two TT were fixed in the bows.

Modernizations

None.

Naval service

No significant events.
