SESTRORETSK torpedo boat (1894)
№104
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Сестрорецк [Sestroretsk], 4.1895- №104 |
Normand, Le Havre, France: Sestroretsk |
1894: Sestroretsk |
№104 (9.4.1918) |
none |
none |
Technical data
| Displacement normal, t | 80 |
|---|---|
| Displacement full, t | |
| Length, m | 36.0 pp 36.8 oa |
| Breadth, m | 4.17 |
| Draught, m | 2.62 max |
| No of shafts | 1 |
| Machinery | 1 VTE, 1 Du Temple - Normand boiler |
| Power, h. p. | 1300 |
| Max speed, kts | 23 |
| Fuel, t | coal 17 |
| Endurance, nm(kts) | 475(15) |
| Armament | 2 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 1 x 1 - 381 TT |
| Complement | 21 |
Standard scale images
Sestroretsk 1894
Graphics

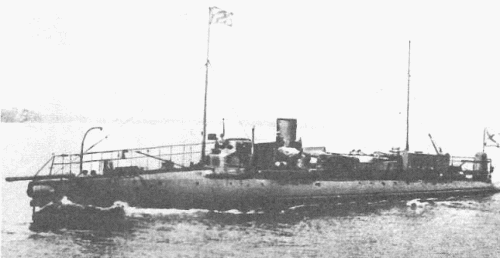

№104
Project history
A smaller boat than Pernov with one fixed bow and one training deck TT.
Modernizations
1910: - 1 x 5 - 37/17, 1 x 1 - 381 TT; + 1 x 1 - 7.6/94
Naval service
Dispatch vessel №104 was captured 9.4.1918 by German troops at Abo.
№104
