PRYTKIY destroyers (1938 / 1946)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Прыткий [Prytkiy] (ex-Z14 Friedrich Ihn)   503 Blohm & Voss, Hamburg, Germany 5/1935 5.11.1935 4/1938 // 2.1946 stricken 3.1952
Пылкий [Pylkiy] (ex-Z15 Erich Steinbrinck)   504 Blohm & Voss, Hamburg, Germany 5/1935 24.9.1936 6/1938 // 1.1946 accommodation ship 4.1949


Technical data


Displacement standard, t

2239

Displacement full, t

3165

Length, m

Prytkiy: 116.3 wl 121.0 oa

Pylkiy: 116.3 wl 121.3 oa

Breadth, m

11.3

Draught, m

4.23

No of shafts

2

Machinery

2 sets Germania geared steam turbines, 6 Benson boilers

Power, h. p.

67000

Max speed, kts

38

Fuel, t

oil 715

Endurance, nm(kts)1825(19)
Armament

Prytkiy: 4 x 1 - 128/45 SK C/34, 7 x 2 - 37/69 FlaK M/42, 1 x 4 - 20/65 C/38, 3 x 2 - 20/65 C/38, 2 x 4 - 533 TT (16), 4 DCT (18), 60 mines

Pylkiy: 5 x 1 - 128/45 SK C/34, 2 x 2 - 37/83 SK C/30, 1 x 4 - 20/65 C/38, 7 x 2 - 20/65 C/38, 2 x 4 - 533 TT (16), 4 DCT (18), 60 mines

Electronic equipmentFuMO 24, FuMO 63K radars, S-Gerät sonar, GHG hydrophone, FuMB 1, FuMB 3, FuMB 4 ECM suites
Complement

315

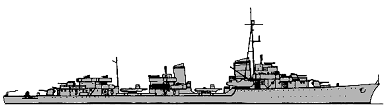

Standard scale images


<i>sister-ship Z5 Paul Jacobi</i> 1945
sister-ship Z5 Paul Jacobi 1945


Project history

Former-German destroyers of 1934A type transferred by reparations.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
