PROCHNYY destroyer (1939 / 1946)


Ships


Name No Yard No Builder Laid down Launched Comp Fate
Прочный [Prochnyy] (ex-Z20 Karl Galster)   922 Deschimag, Bremen, Germany 9/1937 15.6.1938 3/1939 // 2.1946 accommodation ship 11.1954


Technical data


Displacement standard, t

2411

Displacement full, t

3415

Length, m

120.0 wl 125.1 oa

Breadth, m

11.8

Draught, m

4.50

No of shafts

2

Machinery

2 Deschimag geared steam turbines sets, 6 Wagner boilers

Power, h. p.

70000

Max speed, kts

38.5

Fuel, t

oil 739

Endurance, nm(kts)2050(19)
Armament

5 x 1 - 128/45 SK C/34, 2 x 2 - 37/69 FlaK M/42, 2 x 1 - 37/57 FlaK M/43, 1 x 4 - 20/65 C/38, 2 x 2 - 20/65 C/38, 1 x 1 - 20/65 C/38, 2 x 4 - 533 TT (16), 4 DCT (18), 60 mines

Electronic equipmentFuMO 24, FuMO 63K radars, S-Gerät sonar, GHG hydrophone, FuMB 3, FuMB 4 ECM suites
Complement

330

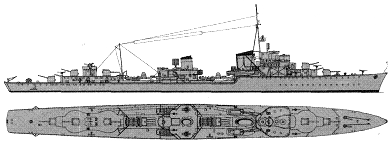

Standard scale images


<i>Prochnyy</i> 1945
Prochnyy 1945


Project history

Former German destroyer of 1936 type transferred by reparations.

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
