PODVIZHNYY destroyer (1940 / 1945)





Podvizhnyy Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Подвижный [Podvizhnyy] (ex-T12)   939 Deschimag, Bremen, Germany 8/1938 12.4.1939 7/1940 // 12.1945 test ship 4.1953


Technical data


Displacement standard, t

839

Displacement full, t

1082

Length, m

82.2 wl 87.1 oa

Breadth, m

8.62

Draught, m

2.33 normal 2.94 max

No of shafts

2

Machinery

2 sets Wagner geared steam turbines, 4 Wagner boilers

Power, h. p.

31000

Max speed, kts

35

Fuel, t

oil 200

Endurance, nm(kts)1070(19)
Armament

1 x 1 - 105/45 SK C/32, 1 x 2 - 37/69 FlaK M/42, 2 x 4 - 20/65 C/38, 4 x 1 - 20/65 C/38, 1 x 3 - 533 TT, 2 DCT (32), 30 mines

Electronic equipmentFuMO 28, 2x FuMO 63 radars, GHG hydrophone, FuMB 4, FuMB 6 ECM suites
Complement

119



Graphics

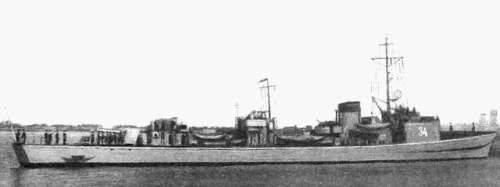

<i>Podvizhnyy</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Podvizhnyy Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Former German torpedo boat of 1935 type transferred by reparations.

Modernizations

None.

Naval service

No significant events.
