OGNEVOY destroyers (projects 30, 30K) (1945 - 1950)
Ognevoy
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| Огневой [Ognevoy] (ex-Опасный [Opasnyy]) | 1056 | 200 61 Kommunar Yd, Nikolayev // Poti port wks | 20.11.1939 | 12.11.1940 | 5.4.1945 | target 2.1956 | project 30 | |
| Осмотрительный [Osmotritelnyy] | 103 | 402 Yd, Molotovsk | 5.5.1940 | 24.8.1944 | 29.9.1947 | accommodation ship 4.1958 | proejct 30K and incomplete ships | |
| Сталин [Stalin] (ex-Охотник [Okhotnik]) | 104 | 402 Yd, Molotovsk | 25.6.1940 | 19.7.1947 | 29.9.1948 | stricken 4.1958 | proejct 30K and incomplete ships | |
| Жаркий [Zharkiy] (ex-Опустошительный [Opustoshitelnyy]) | 120 | 402 Yd, Molotovsk | 25.3.1941 | --- | --- | suspended 19.9.1941 | proejct 30K and incomplete ships | |
| Живой [Zhivoy] (ex-Оснащённый [Osnashchonnyy]) | 121 | 402 Yd, Molotovsk | 25.3.1941 | --- | --- | suspended 19.9.1941 | proejct 30K and incomplete ships | |
| Жуткий [Zhutkiy] (ex-Озабоченный [Ozabochennyy]) | 122 | 402 Yd, Molotovsk | 1941 | --- | --- | cancelled 9.1941 | proejct 30K and incomplete ships | |
| Жгучий [Zhguchiy] (ex-Обжигающий [Obzhigayushchiy]) | 130 | 402 Yd, Molotovsk | 1941 | --- | --- | cancelled 9.1941 | proejct 30K and incomplete ships | |
| Жестокий [Zhestokiy] (ex-Охраняющий [Okhranyayushchiy]) | 131 | 402 Yd, Molotovsk | 1941 | --- | --- | cancelled 9.1941 | proejct 30K and incomplete ships | |
| Внушительный [Vnushitelnyy] | 3 | 199 Yd, Komsomolsk-on-Amur | 16.10.1940 | 14.5.1947 | 29.12.1947 | target 4.1958 | proejct 30K and incomplete ships | |
| Выносливый [Vynoslivyy] | 4 | 199 Yd, Komsomolsk-on-Amur | 29.10.1940 | 17.11.1947 | 5.12.1948 | target 2.1959 | proejct 30K and incomplete ships | |
| Властный [Vlastnyy] | 5 | 199 Yd, Komsomolsk-on-Amur | 29.10.1940 | 15.6.1948 | 27.12.1948 | target 2.1959 | proejct 30K and incomplete ships | |
| Ведущий [Vedushchiy] | 10 | 199 Yd, Komsomolsk-on-Amur | 1941 | --- | --- | cancelled 9.1941 | proejct 30K and incomplete ships | |
| Внезапный [Vnezapnyy] | 11 | 199 Yd, Komsomolsk-on-Amur | 1941 | --- | --- | cancelled 9.1941 | proejct 30K and incomplete ships | |
| Отличный [Otlichnyy] | 538 | 190 Zhdanov Yd, Leningrad // 189 Ordzhonikidze Yd, Leningrad | 2.12.1939 | 7.5.1947 | 31.10.1948 | target 2.1960 | proejct 30K and incomplete ships | |
| Образцовый [Obraztsovyy] | 539 | 190 Zhdanov Yd, Leningrad | 2.12.1939 | 30.10.1947 | 29.9.1949 | target 2.1959 | proejct 30K and incomplete ships | |
| Отважный [Otvazhnyy] | 540 | 190 Zhdanov Yd, Leningrad // 194 Marti Yd, Leningrad | 30.12.1939 | 2.1.1948 | 2.3.1950 | stricken 3.1958 | proejct 30K and incomplete ships | |
| Одарённый [Odaryonnyy] | 541 | 190 Zhdanov Yd, Leningrad // 194 Marti Yd, Leningrad | 30.12.1939 | 27.12.1948 | 28.6.1950 | training hulk 4.1958 | proejct 30K and incomplete ships | |
| Огненный [Ognennyy] | 547 | 190 Zhdanov Yd, Leningrad | 30.6.1940 | --- | --- | suspended 10.9.1941 | proejct 30K and incomplete ships | |
| Ожесточённый [Ozhestochonnyy] | 548 | 190 Zhdanov Yd, Leningrad | 27.7.1940 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Острый [Ostryy] | 549 | 190 Zhdanov Yd, Leningrad | 18.12.1940 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Ослепительный [Oslepitelnyy] | 550 | 190 Zhdanov Yd, Leningrad | 12.1940 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Осторожный [Ostorozhnyy] | 557 | 190 Zhdanov Yd, Leningrad | 30.1.1941 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Отчётливый [Otchotlivyy] | 558 | 190 Zhdanov Yd, Leningrad | 14.2.1941 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Озорной [Ozornoy] | 1087 | 200 61 Kommunar Yd, Nikolayev | 20.11.1939 | 25.12.1940 | 9.1.1949 | to Bulgaria 3.1950 (Георги Димитров [Georgi Dimitrov) | proejct 30K and incomplete ships | |
| Отменный [Otmennyy] | 1093 | 200 61 Kommunar Yd, Nikolayev | 30.10.1940 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Обученный [Obuchennyy] (ex-Обходной [Obkhodnoy]) | 1094 | 200 61 Kommunar Yd, Nikolayev | 30.12.1940 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Отчаянный [Otchayannyy] | 1095 | 200 61 Kommunar Yd, Nikolayev | 30.12.1940 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Общительный [Obshchitelnyy] (ex-Отрывистый [Otryvistyy]) | 1096 | 200 61 Kommunar Yd, Nikolayev | 30.12.1940 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Организованный [Organizovannyy] (ex-Опорный [Opornyy] | 311 | 189 Ordzhonikidze Yd, Leningrad | 21.3.1941 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Отборный [Otbornyy] | 312 | 189 Ordzhonikidze Yd, Leningrad | 21.3.1941 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships | |
| Отражающий [Otrazhayushchiy] (ex-Огнедышащий [Ognedyshachiy]) | 313 | 189 Ordzhonikidze Yd, Leningrad | 19.4.1941 | --- | --- | suspended 20.7.1941 | proejct 30K and incomplete ships |
Technical data
| Data variant | pr. 30 | pr. 30K |
|---|---|---|
| Displacement standard, t | 2240 |
2125 |
| Displacement full, t | 2767 |
2860 |
| Length, m | 115.5 |
117.0 |
| Breadth, m | 11.0 |
11.0 |
| Draught, m | 4.68 |
4.68 |
| No of shafts | 2 |
2 |
| Machinery | 2 geared steam turbines sets, 4 KV-30 boilers |
2 geared steam turbines sets, 4 KV-30 boilers |
| Power, h. p. | 54000 |
54000 |
| Max speed, kts | 37 |
36.5 |
| Fuel, t | oil 778 |
oil 778 |
| Endurance, nm(kts) | 3060(18) |
3060(18) |
| Armament | as designed: 2 x 2 - 130/50 B-2LM, 1 x 2 - 76/52 39K, 3 x 1 - 37/63 70K, 4 x 1 - 12.7/79, 2 x 3 - 533 TT, 2 DCR (30), 56 mines Ognevoy: 2 x 2 - 130/50 B-2LM, 1 x 2 - 76/52 39K, 6 x 1- 37/63 70K, 4 x 1 - 12.7/79, 2 x 3 - 533 TT, 2 DCT, 2 DCR (22), 60 mines |
2 x 2 - 130/51 B-2LM, 1 x 2 - 85/52 92K, 6 x 1- 37/73 70K, 2 x 3 - 533 TT, 2 DCT, 2 DCR (22), 60 mines |
| Electronic equipment | as designed: UZPN hydrophone Ognevoy: Giuys-1B radar, Tamir-5N sonar |
Giuys-1B, Rif-1, Vympel-2, Rym-1 radars, Tamir-5N sonar |
| Complement | 293 |
301 |
Standard scale images

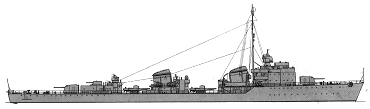

Ognevoy 1950
Vynoslivyy 1950
Graphics
Obraztsovyy
Ognevoy
Project history
In August, 1937, simultaneously with a revision of building program of project 7 destroyers, the decision on creation of new destroyer was made. Requirement given out 15.11.1937 provided armament consisted from 4 130mm, 2 76mm, 4 37mm guns, 4 7.62mm MGs and 3 triple 533mm TTs; 38kts speed, 4000nm endurance. Ship dimensions and machinery structure corresponded to project 7u. The Basic design was developed in two variants: with single and twin 130mm turrets. Instead of 3 triple 533mm TTs both variants should carry 2 quintuple ones. As a result 27.10.1939 project 30 with twin turrets was approved, however 130mm guns remained single purpose in B-2LM turrets. Prior to the beginning of Great Patriotic War 28 ships were laid down from which 5 destroyers were launched. To the war end only Ognevoy was completed and entered in May, 1945 Black Sea Fleet. 10 more ships were completed in 1947-1950 under modified project 30K with radars and little enhanced AA armament.
Modernizations
None.
Naval service
No significant events.
