NARGEN torpedo boats (1891)





Nargen

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Нарген [Nargen], 8.1893- Усури [Usuri], 1.1898- №203     Crichton, Abo 1889 15.11.1889 late 1891 auxiliary 11.1907
Гогланд [Gogland], 8.1893- Сунгари [Sungari], 1.1898- №204     Crichton, Abo 1889 17.12.1889 late 1891 wrecked 30.6.1904


Technical data


Displacement normal, t

140

Displacement full, t153
Length, m

47.3

Breadth, m

5.00

Draught, m

2.64 max

No of shafts

2

Machinery

2 VTE, 2 locomotive boilers

Power, h. p.

Usuri: 2039

Sungari: 1956

Max speed, kts

Usuri: 19.5

Sungari: 20.3

Fuel, t

coal 30

Endurance, nm(kts)
Armament

3 x 5 - 37/17 Hotchkiss, 1 - 381 TT (bow), 2 x 1 - 381 TT

Complement21


Standard scale images


<i>Nargen </i>1892
Nargen 1892


Graphics

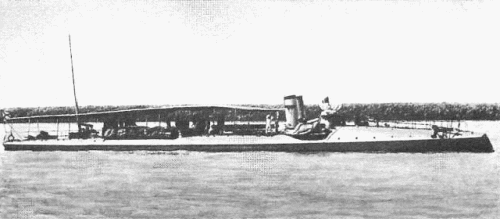

<i>Nargen</i>
Nargen


Project history

One fixed bow TT and two trainable.

Modernizations

None.

Naval service

№204 ran ashore 30.6.1904 off Wonsan, damaging a rudder, and was scuttled by own crew.
