LEYTENANT SHESTAKOV destroyers (1909)





Leytenant Shestakov

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Лейтенант Шестаков [Leytenant Shestakov]     Naval, Nikolayev 9/1906 8/1907 10/1909 scuttled 18/6/1918
Капитан Сакен [Kapitan Saken] (ex-Лейтенант Пущин [Leytenant Pushchin])     Naval, Nikolaev 9/1906 9/1907 10/1909 captured by Germany 1/5/1918 (R04), to White Army 10/1920, interned by France 29/12/1920
Капитан-Лейтенант Баранов [Kapitan-Leytenant Baranov]     Naval, Nikolaev 9/1906 5/11/1907 10/1909 scuttled 18/6/1918
Лейтенант Зацарённый [Leytenant Zatsaryonnyy]     Naval, Nikolaev 9/1906 29/10/1907 10/1909 sunk 30/6/1917


Technical data


Displacement normal, t

635

Displacement full, t849
Length, m

74.1

Breadth, m

8.28

Draught, m

2.59

No of shafts

2

Machinery

2 VTE, 4 Normand boilers

Power, h. p.

6500

Max speed, kts

25

Fuel, t

coal 200

Endurance, nm(kts)1440 - 1930(12)
Armament

Leytenant Shestakov: 1 x 1 - 120/43 Canet, 5 x  1 - 47/40 Hotchkiss, 2 x 1 - 7.6/94, 3 x 1 - 450 TT

Kapitan Saken: 1 x 1 - 120/43 Canet, 5 x 1 - 75/48 Canet, 2 x 1 - 7.6/94, 3 x 1 - 450 TT

Kapitan-Leytenant Baranov: 1 x 1 - 120/43 Canet, 5 x 1 - 75/48 Canet, 4 x 1 - 7.6/94, 3 x 1 - 450 TT

Leytenant Zatsaryonnyy: 6 x 1 - 75/48 Canet, 4 x 1 - 7.6/94, 3 x 1 - 450 TT

Complement

91



Standard scale images

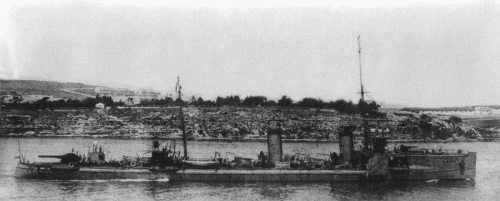

<i>Leytenant Shestakov</i> 1914
Leytenant Shestakov 1914


Graphics


<i> Leytenant Shestakov</i>
Leytenant Shestakov


Ship project history


Built taking into account experience of the Russian-Japanese war. The project was developed on the basis of torpedo cruiser Vsadnik, differed from a prototype by increased dimensions and structure of artillery.

Modernizations


1914, Leytenant Zatsaryonnyy: - 6 x 1 - 75/48, 1 x 1 - 7.6/94; + 2 x 1 - 120/43 Canet, 1 x 1 - 47/40 Hotchkiss, 40 mines

1915, Leytenant Shestakov: - 3 x 1 - 47/40; + 1 x 1 - 120/43 Canet, 40 mines

1915, Kapitan Saken: - 5 x 1 - 75/48, 2 x 1 - 7.6/94; + 1 x 1 - 120/43 Canet, 1 x 1 - 47/40 Hotchkiss, 40 mines

1916, Kapitan-Leytenant Baranov: - 5 x 1 - 75/48, 1 x 1 - 7.6/94; + 1 x 1 - 120/43 Canet, 2 x 1 - 47/40 Hotchkiss, 40 mines

1916, Leytenant Zatsaryonnyy: - 1 x 1 - 120/43, 1 x 1 - 47/40, 1 x 1 - 7.6/94; + 5 x 1 - 75/48 Canet

Naval service


Leytenant Zatsaryonny has sunk on mine SE of Fidonisi beacon 30/6/1917. Kapitan-leytenant Baranov and Leytenant Shestakov 18/6/1918 were scuttled by crews by order of Bolsheviks at Novorossiysk. Kapitan Saken was withdrawn by Whites to Bizerte and broken up in the early 1930s.
