LEYTENANT BURAKOV torpedo boat (1900 / 1901)





Leytenant Burakov Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Лейтенант Бураков [Leytenant Burakov] (ex-Таку [Taku], ex-海华 [Hai Hoha])   611 Schichau, Elbing, Germany 1898 1899 1900 // 2.1901 scuttled 30.7.1904


Technical data


Displacement normal, t

243

Displacement full, t

284

Length, m

59.0

Breadth, m

6.40

Draught, m

2.55

No of shafts

2

Machinery

2 VTE, 4 Thornycroft boilers

Power, h. p.

6000

Max speed, kts

33.6

Fuel, t

coal 67

Endurance, nm(kts)

2000(10)

Armament

6 x 1 - 47/30 Hotchkiss Mk II, 2 x 1 - 350 TT

Complement

57



Standard scale images

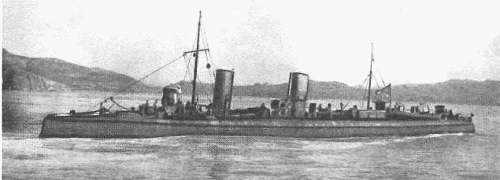

<i>Leytenant Burakov </i>1901
Leytenant Burakov 1901


Graphics


<i>Leytenant Burakov</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Leytenant Burakov Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Originally the Chinese Hai Hoha captured by the British destroyers Fame and Whiting in the attack on the Taku forts, and assigned to Russia. She had two large funnels and two deck TT and was easily the fastest of the Russian flotilla in the war with Japan.

Modernizations

1904: - 2 x 1 - 350 TT; + 1 x 1 - 381 TT

Naval service

She was torpedoed by the picket boats of the Mikasa and Fuji in Ta Ho Bay to the east of Port Arthur 23.7.1904 and exploded by own crew 30.7.1904 (towing was impossible).

Many thanks to Wolfgang Stöhr for additional information on this page.
