GELENDJIK torpedo boat (1884)





Gelendzhik

Ships


Names Builders Completed Losses Transfers Discarding

Геленджик [Gelendzhik], 4.1895- №255, 7.1915- Т.9 [T.9], 4.1916- Т.79 [T.79], 8.1916- Т.279 [T.279], 10.1916- №9

F C de la Méditerranée, La Seyne, France: Gelendzhik

1884: Gelendzhik

7/1915: T.9 (2nd time)

№9 (1.5.1918)

none

1907: №255



Technical data


Displacement normal, t

71

Displacement full, t75
Length, m

37.4

Breadth, m

3.78

Draught, m

2.13 max

No of shafts

1

Machinery

1 VC, 1 locomotive boiler

Power, h. p.

520

Max speed, kts

18

Fuel, t

coal 11

Endurance, nm(kts)1050(11)
Armament

1 x 1 - 37/20 Hotchkiss, 1 x 5 - 37/17 Hotchkiss, 2 - 381 TT (bow)

Complement16


Standard scale images


similar <i>Poti </i>1892
similar Poti 1892


Graphics

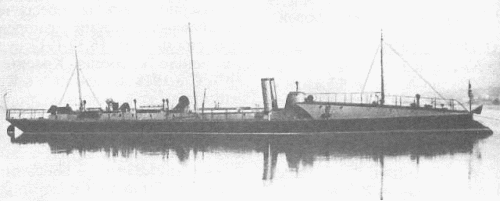

<i>Gelendzhik</i>
Gelendzhik


Project history

Three small masts and two funnels abreast. The TT were fixed in the bows.

Modernizations

1910: - 2 - 381 TT; + 1 x 1 - 7.6/94, mechanical minesweeping gear

Naval service

TB No255 was stricken in 1907 but in July 1915 commissioned again as minesweeper (really converted to minesweeper in 1910), in October 1916 reclassified as despatch vessel. 1.5.1918 she was captured by German troops at Sevastopol.
